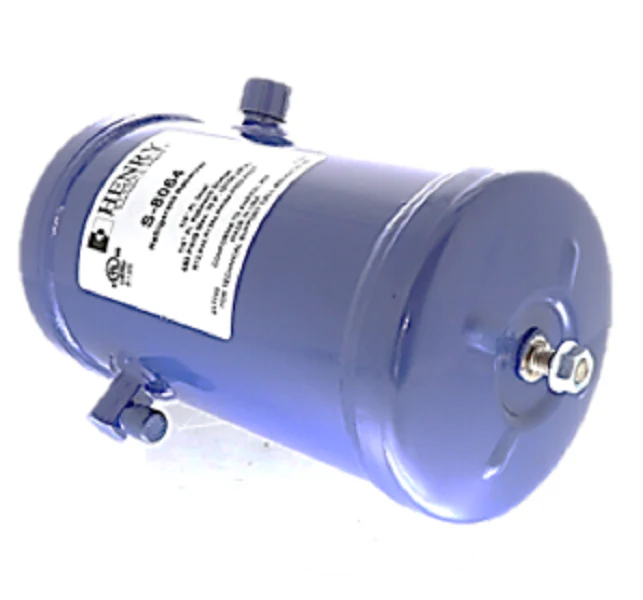

Henry Technologies S-8064 Receiver
The Henry Technologies S-8064 Receiver is a high-performance 1/4 Flare Vertical Receiver engineered for mission-critical liquid refrigerant storage in small to medium commercial and industrial HVACR systems. Built with a heavy-duty steel shell and plated steel flare connections, this liquid refrigerant receiver functions as a reliable surge tank to provide a continuous liquid supply to the expansion device, especially during high-demand cycles or system pump-downs. With a maximum working pressure of 450 psi and an operating temperature range of 0°F to 250°F, the S-8064 is compatible with most standard HCFC and HFC refrigerants. Its compact 5-inch OD by 10-inch shell height allows for efficient vertical receiver installation in restricted mechanical spaces. This cULus Listed component ensures robust refrigerant management, maintaining system stability by accommodating variations in charge levels and protecting the compressor from liquid slugging during fluctuating load conditions.
Key Benefits- Optimized Liquid Supply: Ensures a consistent column of liquid refrigerant reaches the TXV, preventing flash gas and improving evaporator efficiency.
- Industrial-Grade Construction: Features a rugged steel shell and a 1/4" SAE flare inlet for secure, leak-free integration into high-pressure liquid lines.
- Efficient Space Utilization: The vertical design and 5-inch diameter footprint make it ideal for compact rack systems and residential split units.
- Pump-Down Capacity: Provides a safe holding volume for refrigerant during maintenance or seasonal shutdowns, simplifying field service tasks.
- Broad Compatibility: Rated for a wide range of refrigerants and oils, meeting the technical requirements for diverse process cooling applications.
What is the maximum pressure rating for the Henry S-8064?
The S-8064 is rated for a maximum working pressure of 450 psi (31 bar), making it suitable for standard R-22, R-134a, and R-404A systems.
Are the connections compatible with standard flare nuts?
Yes, this model features 1/4" SAE flare inlet and outlet connections, allowing for direct attachment to standard refrigeration copper tubing without the need for brazing in certain configurations.
Does this receiver include a mounting stud?
Yes, the unit typically features a 3/8"-16 mounting stud at the base to ensure a secure vertical orientation during high-vibration operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
