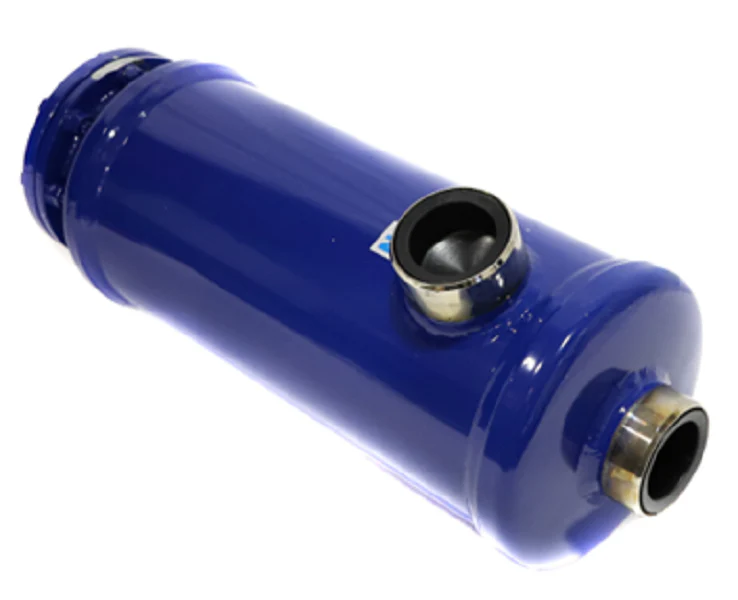

Henry Technologies S-5294 Oil Separator
The Henry Technologies S-5294 is a mission-critical helical oil separator designed for high-efficiency lubricant management in commercial refrigeration and industrial HVAC systems. Engineered with a centrifugal flow path, this unit achieves up to 99% separation efficiency, significantly reducing oil carryover to the condenser and evaporator. It features 2-1/8 inch ODS (Outside Diameter Solder) connections and a 3/8 inch Flare (FL) oil return port, making it compatible with a variety of HCFC and HFC refrigerants and their associated POE or mineral oils. This serviceable oil separator includes a replaceable float assembly and a removable baffle that eliminates turbulence in the oil collection chamber, preventing re-entrapment. Rated for a maximum working pressure of 450 PSI and an operating temperature range of 15°F to 300°F, the S-5294 helical separator is optimized for low-pressure oil management systems, ensuring consistent compressor lubrication and maximizing heat transfer efficiency across the entire refrigeration circuit.
Key Benefits- High Separation Efficiency: The helical flighting design traps nearly all oil particles, maintaining only 0.006% oil by volume in the discharge gas.
- Compressor Protection: Facilitates automatic oil return to the crankcase, preventing compressor failure due to lubrication starvation.
- System Efficiency: Minimizes oil coating on heat exchanger surfaces, which preserves the thermal conductivity of coils and reduces energy consumption.
- Serviceable Design: Features a bolted flange or accessible internal components for oil float assembly replacement and maintenance without full system cut-outs.
- Broad Compatibility: Suitable for use with multi-compressor racks and remote condensing units utilizing scroll or reciprocating compressors.
Where should the Henry S-5294 be installed for maximum effectiveness?
Ideally, install the separator in the discharge line as close to the compressor as possible. Ensure it is positioned vertically and, if the condenser is located higher than the separator, install a check valve on the outlet to prevent liquid refrigerant backflow during the off-cycle.
Is this unit compatible with high-pressure CO2 or R-410A systems?
The S-5294 is rated for a maximum working pressure of 450 PSI. It is designed for standard HFC and HCFC applications. For R-410A or high-pressure transcritical CO2 systems that exceed 450 PSI, a high-pressure rated separator must be used instead.
Do I need to pre-charge the S-5294 with oil before startup?
Yes. To ensure the float mechanism activates immediately and prevents gas bypass to the oil return line, you must pre-charge the separator with the specific quantity and grade of oil required by the compressor manufacturer before commissioning the system.
