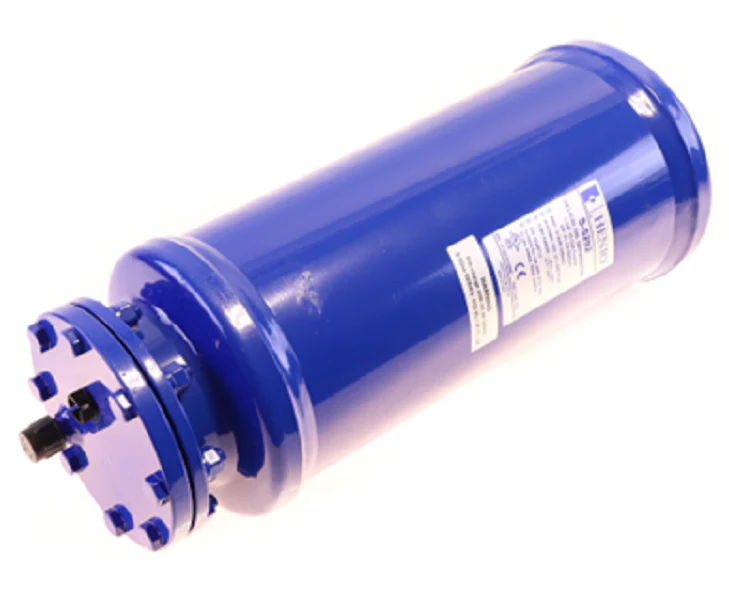

Henry Technologies S-5292 Oil Separator
The Henry Technologies S-5292 Oil Separator is a high-efficiency helical oil separator engineered for demanding refrigeration system maintenance and performance. Featuring 1-5/8 ODS connections and a 3/8 flare oil return, this unit utilizes a patented centrifugal flow path to achieve up to 99% oil separation efficiency with minimal low pressure drop. Designed specifically for low-pressure oil management systems, it is compatible with HFC and HCFC refrigerants, including R-404A and R-507. This serviceable helical separator includes a replaceable float assembly and a magnet to capture metallic debris, protecting the compressor from contamination. Built for durability with copper-plated steel connections and a carbon steel shell, it is rated for a maximum working pressure of 450 PSI. Veteran technicians rely on the S-5292 for multi-compressor racks and remote condensing units to ensure consistent compressor oil return and optimal heat transfer across the evaporator and condenser coils.
Key Benefits- 99% Separation Efficiency: The helical flighting design creates centrifugal force to strip oil from discharge gas without moving parts.
- Serviceable Design: Features a removable flange for quick access to the float assembly, simplifying long-term system upkeep.
- Debris Protection: An internal magnet on the oil float collects fine metallic particles to prevent downstream component damage.
- Optimized Performance: Maintains high velocity while ensuring low pressure drop, preserving overall system EER and cooling capacity.
Is the S-5292 compatible with screw compressors?
No, this helical model is specifically intended for scroll and reciprocating compressors. It should not be used with screw or rotary vane compressors.
What is the minimum operating capacity for this separator?
To maintain proper oil separation velocity, the system should not operate below 33% of the separator's rated tonnage. Oversizing is not recommended.
Does this unit work with A2L refrigerants?
Yes, the S-series construction is compatible with most conventional HFCs, HFOs, and A2L refrigerants as long as the lubricating oils are non-corrosive to steel and copper.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
