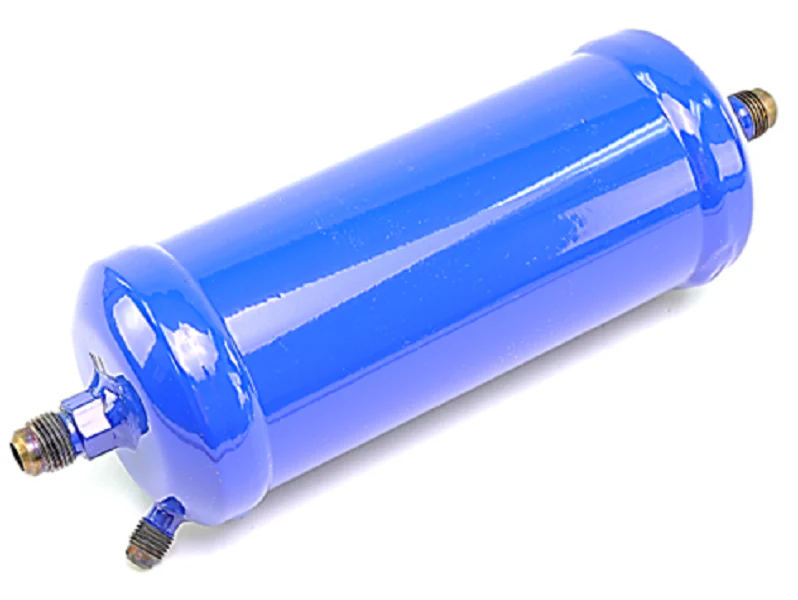

Henry Technologies S-4005 Drier
For veteran technicians managing modern refrigeration rigs, the Henry Technologies S-4005 Oil Drier is a critical component for maintaining the integrity of POE oil systems. Specifically engineered for the high hygroscopic nature of polyolester lubricants used with HFC and HCFC refrigerants, this unit provides micronic filtration down to 6 microns. By installing the S-4005 in the oil return line between the separator and the reservoir, you effectively eliminate the need for individual strainers at each oil level regulator, reducing potential leak points and simplifying your high-pressure oil management architecture.
The unit features 131cm? of XH9 desiccant, optimized for moisture removal in systems prone to acidification. With a 3/8" male flare connection and a robust carbon steel housing, the S-4005 supports a maximum allowable operating pressure of 450 PSIG (31 Bar). Its high flow capacity ensures a low pressure drop across a 3000 cm? filter surface area, protecting compressor lubrication circuits from debris and moisture-induced copper plating. This is a standard-spec solution for ensuring long-term reliability in industrial and commercial HVACR applications.
Key Benefits- Specialized XH9 desiccant core designed specifically to handle the rapid moisture absorption rates of POE oil.
- Comprehensive 6-micron particle retention prevents debris from damaging sensitive electronic oil level regulators.
- Optimized for HVACR oil management, consolidating filtration and drying into a single high-capacity 450 PSI rated canister.
- Universal compatibility with HFC, HCFC, HFO, and CO2 systems, providing versatile application across diverse refrigeration hardware.
When should the Henry S-4005 be replaced?
Standard practice for mechanical and electronic control systems suggests replacement when the pressure drop across the drier exceeds 15 PSIG, or during any major system service where the oil circuit has been exposed to atmosphere.
Is this drier compatible with all refrigerant types?
Yes, the S-4005 is suitable for use with HFC, HCFC, HFO, and CO2 refrigerants. It is explicitly designed for the unique chemical requirements of polyolester lubricants, though it also performs efficiently with mineral and alkylbenzene oils.
Where is the optimal installation point for this drier?
For maximum effectiveness in low-pressure management systems, install the unit in the oil return line. It should be positioned between the oil separator and the reservoir to ensure all oil is filtered before storage and distribution to compressor crankcases.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
