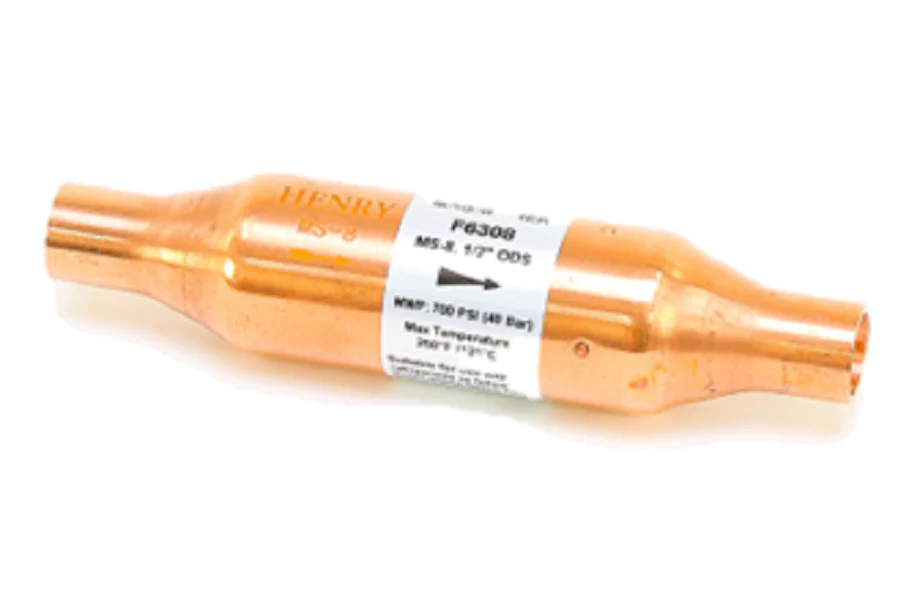

Henry Technologies F6308 Check Valve
The Henry Technologies F6308 is a high-performance Magni-Chek valve engineered for critical backflow prevention in commercial refrigeration and air conditioning systems. Unlike traditional spring-loaded components, this 1/2 inch ODS check valve utilizes magnetic attraction to return the valve plate to its seat. This design creates a decreasing force as the plate moves away from the seat, resulting in a minimal pressure drop and significantly higher system efficiency compared to conventional HVAC check valves.
Constructed with a hermetically sealed solid copper body using Dura Form processing, the Henry F6308 MS-8 eliminates potential leak paths associated with overheated braze materials. The internal assembly features a 30 mesh strainer to protect the system from debris, a stainless steel flapper, and a neoprene-coated valve plate for positive sealing. This refrigerant check valve is rated for a safe working pressure of up to 700 PSI and is compatible with all fluorinated refrigerants, including R-410A. Its versatile design allows for multi-orientation installation in liquid, suction, discharge, or hot gas lines, making it a reliable choice for technical HVACR backflow prevention.
Key Benefits- Magnetic Operation: Uses magnetic force instead of springs to reduce resistance and pressure drop across the valve.
- Enhanced Durability: Hermetically sealed copper body with a built-in 30 mesh strainer ensures long-term reliability and component protection.
- Multi-Position Mounting: Can be installed in any orientation while maintaining full flow direction integrity.
- Broad Compatibility: Suitable for use with all fluorinated refrigerants and oils within a temperature range of -20?F to 250?F.
- Zero Leak Construction: Dura Form manufacturing eliminates structural braze joints for a robust, leak-free performance.
Can the Henry F6308 be used in heat reclaim applications?
This specific magnetic check valve is not recommended for heat reclaim applications with high differential pressures due to its specific magnetic seat characteristics.
What is the benefit of a magnetic check valve over a spring-loaded one?
A magnetic valve provides a decreasing seat force as it opens, which minimizes the pressure drop and maximizes the overall efficiency of the refrigeration cycle.
Is this valve compatible with R-410A systems?
Yes, the F6308 is rated for safe working pressures up to 700 PSI (and tested up to 800 PSI in some configurations), making it fully compatible with high-pressure refrigerants like R-410A.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
