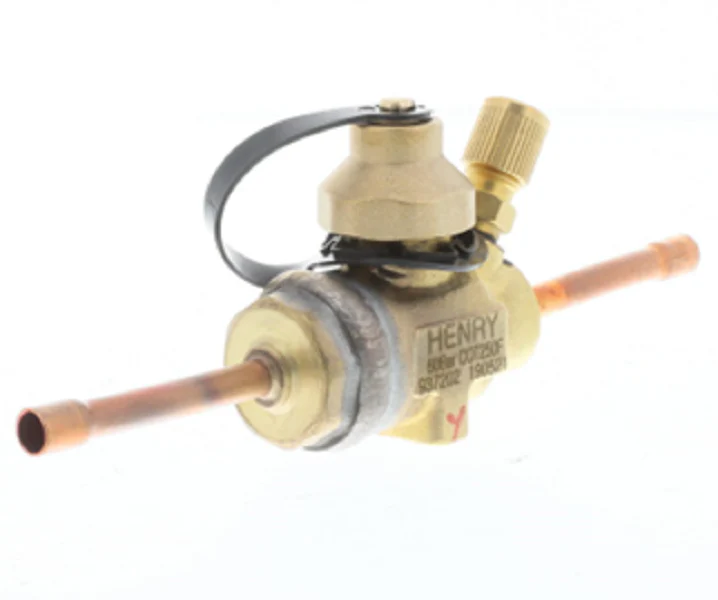

Henry Technologies 937202 Ball Valve
The Henry Technologies 937202 Ball Valve is a professional-grade 1/4 ODS ball valve engineered for critical isolation in high-pressure refrigeration and air conditioning systems. Designed with a robust brass body and plated steel stem, this bi-directional refrigeration valve supports both liquid and gas applications, providing versatile flow control without restriction. The integrated Schrader valve (flare access fitting) allows for seamless pressure monitoring and system charging directly at the valve site. With a maximum operating pressure of 700 PSI (48.3 Bar) and a temperature range of -40?F to 250?F (-40?C to 121?C), the 937202 is fully compatible with HCFC, HFC, CO2, R290, and A2L refrigerants. The quarter-turn operation and positive stem stop ensure precise manual flow adjustment, while the blow-out proof stem and vented ball cavity provide enhanced safety for technicians during HVAC system maintenance. For leak-free performance, it features premium PTFE ball seals and a double O-ring stem design using high-durability neoprene.
Key Benefits for Technicians:- Full Flow Design: Minimizes pressure drop across the system for maximum efficiency.
- System Versatility: Bi-directional flow capability allows for installation in any orientation.
- Enhanced Monitoring: Built-in Schrader access port simplifies diagnostics and charging.
- Durable Sealing: Virgin PTFE seats and neoprene O-rings ensure long-term integrity in demanding environments.
- Position Clarity: Visual indicator on the stem clearly shows valve status (open/closed) at a glance.
What is the maximum pressure rating for the Henry 937202?
This valve is rated for a maximum working pressure of 700 PSI (48.3 Bar), making it suitable for high-pressure HFC and A2L systems.
Is this ball valve compatible with CO2 systems?
Yes, the Henry 937202 is engineered for compatibility with CO2, as well as HCFC and HFC refrigerants and their associated oils.
Does this valve require specialized mounting?
The unit includes an integrated mounting pad to simplify installation and provide additional stability within the piping network.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $36.99
-65%$36.99
$12.95Henry Technologies 937202 Ball Valve
The Henry Technologies 937202 Ball Valve is a professional-grade 1/4 ODS ball valve engineered for critical isolation in high-pressure refrigeration and air conditioning systems. Designed with a robust brass body and plated steel stem, this bi-directional refrigeration valve supports both liquid and gas applications, providing versatile flow control without restriction. The integrated Schrader valve (flare access fitting) allows for seamless pressure monitoring and system charging directly at the valve site. With a maximum operating pressure of 700 PSI (48.3 Bar) and a temperature range of -40?F to 250?F (-40?C to 121?C), the 937202 is fully compatible with HCFC, HFC, CO2, R290, and A2L refrigerants. The quarter-turn operation and positive stem stop ensure precise manual flow adjustment, while the blow-out proof stem and vented ball cavity provide enhanced safety for technicians during HVAC system maintenance. For leak-free performance, it features premium PTFE ball seals and a double O-ring stem design using high-durability neoprene.
Key Benefits for Technicians:- Full Flow Design: Minimizes pressure drop across the system for maximum efficiency.
- System Versatility: Bi-directional flow capability allows for installation in any orientation.
- Enhanced Monitoring: Built-in Schrader access port simplifies diagnostics and charging.
- Durable Sealing: Virgin PTFE seats and neoprene O-rings ensure long-term integrity in demanding environments.
- Position Clarity: Visual indicator on the stem clearly shows valve status (open/closed) at a glance.
What is the maximum pressure rating for the Henry 937202?
This valve is rated for a maximum working pressure of 700 PSI (48.3 Bar), making it suitable for high-pressure HFC and A2L systems.
Is this ball valve compatible with CO2 systems?
Yes, the Henry 937202 is engineered for compatibility with CO2, as well as HCFC and HFC refrigerants and their associated oils.
Does this valve require specialized mounting?
The unit includes an integrated mounting pad to simplify installation and provide additional stability within the piping network.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
