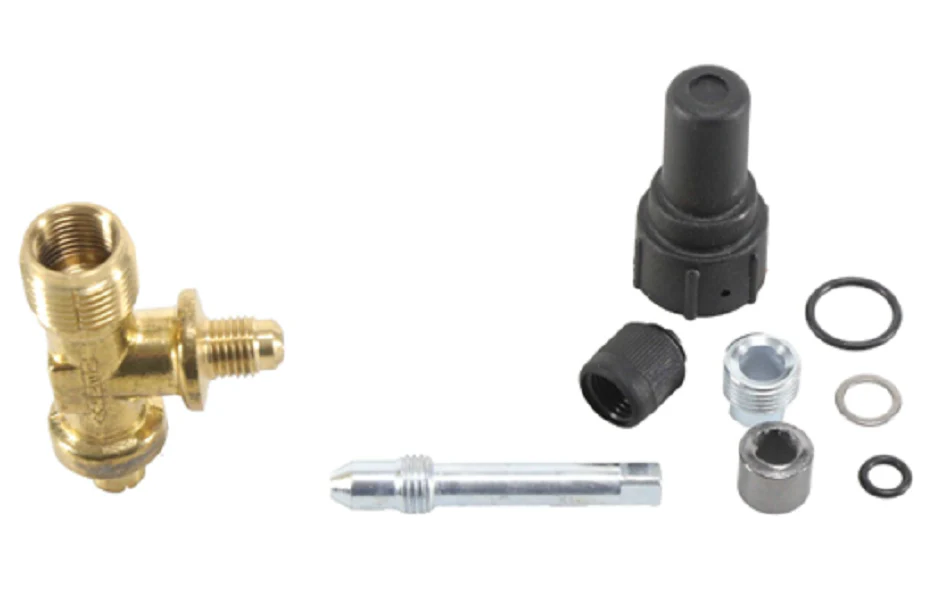

Henry Technologies 9270 Angle Valve
The Henry Technologies 9270 Angle Valve is a heavy-duty, packed-style component engineered for critical isolating, charging, and purging operations in commercial HVACR systems. Built with a robust brass body and a plated steel stem, this 1/4" angle valve features a 1/4" ODS bottom inlet and a 1/4" M flare side outlet, facilitating secure refrigerant flow control in tight mechanical footprints. This HVAC shutoff valve utilizes a graphite compound packing gland and a metal-to-metal seat seal to ensure leak-proof performance under high-pressure conditions. Compatible with a broad spectrum of HCFC and HFC refrigerants and their respective oils, the 9270 operates reliably across a wide temperature range of -29?C to +149?C (-20?F to +300?F). The non-backseating design, coupled with a molded plastic seal cap, provides technicians with a dependable solution for refrigeration system maintenance, allowing for precise fluid management and system evacuation without risking atmospheric contamination.
Key Benefits- Durable Construction: Features a high-tensile brass body and plated steel stem for long-term resistance to mechanical wear and corrosion.
- Broad Compatibility: Fully compatible with standard HFC/HCFC refrigerants, making it a versatile stock item for various service calls.
- High Pressure Resilience: Rated for allowable operating pressures up to 500 PSI (34.5 Bar), meeting the demands of modern refrigeration cycles.
- Secure Sealing: Employs a graphite-packed gland and metal-to-metal seating to maintain vacuum integrity during purging and charging.
- Compact Angle Flow: The 90-degree configuration allows for cleaner piping runs and easier access in confined condenser or evaporator housings.
Is the 9270 valve suitable for ammonia systems?
No, this brass series valve is designed for HCFC and HFC refrigerants. For ammonia applications, a steel-bodied valve from the Henry 77 series should be specified to prevent material degradation.
Can the packing be replaced while the valve is under pressure?
This specific model is a non-backseating valve. System pressure should be recovered or isolated before attempting any maintenance on the packing gland to ensure technician safety.
What are the specific connection types for this valve?
The unit features a 1/4" ODS (Outside Diameter Sweat) bottom connection for brazing and a 1/4" MFL (Male Flare) side connection for standard service manifold hoses.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $68.44
-65%$68.44
$23.95Henry Technologies 9270 Angle Valve
The Henry Technologies 9270 Angle Valve is a heavy-duty, packed-style component engineered for critical isolating, charging, and purging operations in commercial HVACR systems. Built with a robust brass body and a plated steel stem, this 1/4" angle valve features a 1/4" ODS bottom inlet and a 1/4" M flare side outlet, facilitating secure refrigerant flow control in tight mechanical footprints. This HVAC shutoff valve utilizes a graphite compound packing gland and a metal-to-metal seat seal to ensure leak-proof performance under high-pressure conditions. Compatible with a broad spectrum of HCFC and HFC refrigerants and their respective oils, the 9270 operates reliably across a wide temperature range of -29?C to +149?C (-20?F to +300?F). The non-backseating design, coupled with a molded plastic seal cap, provides technicians with a dependable solution for refrigeration system maintenance, allowing for precise fluid management and system evacuation without risking atmospheric contamination.
Key Benefits- Durable Construction: Features a high-tensile brass body and plated steel stem for long-term resistance to mechanical wear and corrosion.
- Broad Compatibility: Fully compatible with standard HFC/HCFC refrigerants, making it a versatile stock item for various service calls.
- High Pressure Resilience: Rated for allowable operating pressures up to 500 PSI (34.5 Bar), meeting the demands of modern refrigeration cycles.
- Secure Sealing: Employs a graphite-packed gland and metal-to-metal seating to maintain vacuum integrity during purging and charging.
- Compact Angle Flow: The 90-degree configuration allows for cleaner piping runs and easier access in confined condenser or evaporator housings.
Is the 9270 valve suitable for ammonia systems?
No, this brass series valve is designed for HCFC and HFC refrigerants. For ammonia applications, a steel-bodied valve from the Henry 77 series should be specified to prevent material degradation.
Can the packing be replaced while the valve is under pressure?
This specific model is a non-backseating valve. System pressure should be recovered or isolated before attempting any maintenance on the packing gland to ensure technician safety.
What are the specific connection types for this valve?
The unit features a 1/4" ODS (Outside Diameter Sweat) bottom connection for brazing and a 1/4" MFL (Male Flare) side connection for standard service manifold hoses.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
