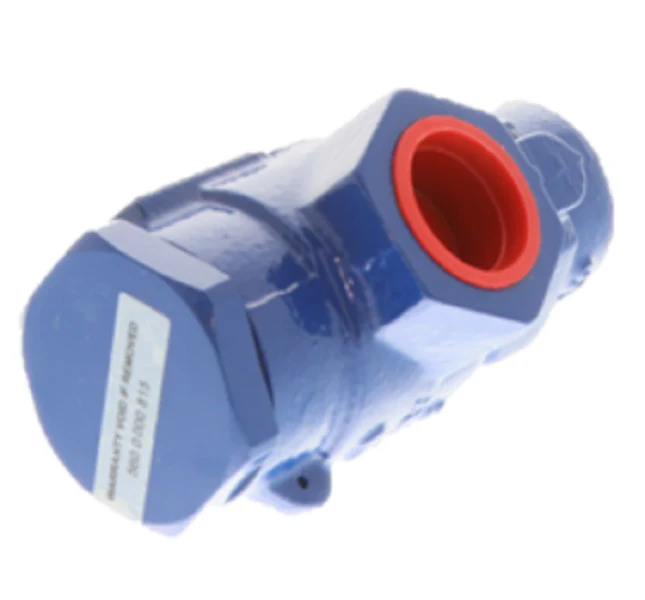

Henry Technologies 5602-250 Valve
The Henry Technologies 5602-250 is a high-capacity angle relief valve engineered specifically for industrial refrigeration systems and high-pressure vessel protection. Featuring a 3/4" MPT inlet and a 1" FPT outlet, this pressure relief valve is designed to discharge vapor to atmosphere or low-pressure headers efficiently. Calibrated to a 250 PSI set pressure, the 5602 series utilizes a brass body and high-grade internal components to ensure reliable seating and repeatable blowdown performance. It is compatible with HFC, HCFC, and CO2 refrigerants, making it a versatile component for commercial HVACR applications. The angle body configuration allows for simplified piping layouts, while the capacity rated internal orifice provides the necessary flow rates to protect large receivers. This Henry valve meets necessary safety standards for pressure relief devices, providing essential overpressure protection in ammonia-free refrigeration cycles without compromising system integrity.
Key Benefits- Precision Calibration: Factory-set at 250# PSI to ensure immediate response during overpressure events.
- Field-Proven Durability: Robust brass construction resists corrosion and maintains seat integrity under extreme thermal cycling.
- Optimized Flow: Oversized 1" outlet reduces backpressure during discharge, ensuring the relief valve capacity meets design specifications.
- Refrigerant Compatibility: Fully compatible with standard mineral and POE oils used in R-404A, R-134a, and R-407C systems.
What is the discharge capacity for the Henry 5602-250?
The discharge capacity is measured in pounds of air per minute and depends on the specific set pressure; at 250 PSI, this valve provides significant throughput for medium-to-large refrigeration receivers.
Can this angle relief valve be mounted horizontally?
For optimal performance and to prevent debris from fouling the seat, it is recommended to install the valve vertically with the inlet facing down.
Is the 5602-250 suitable for liquid relief applications?
No, this specific model is designed for vapor relief. Using it for liquid expansion may result in inaccurate discharge rates and potential chatter.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
