Henry Technologies 5240-1/2-300 Valve

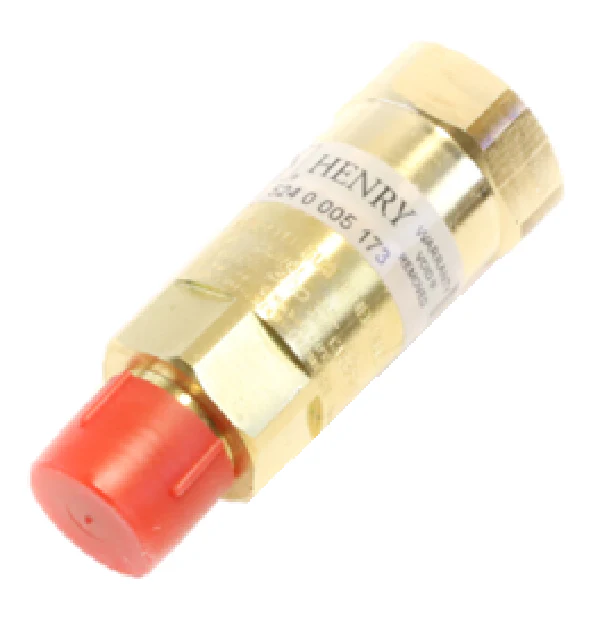

The Henry Technologies 5240-1/2-300 Valve is a direct spring-action relief valve engineered for critical overpressure protection in industrial and commercial refrigeration systems. Featuring a 1/2 inch MPT inlet and a 3/4 inch FPT outlet, this high-capacity safety device is designed for ASME Section VIII, Division 1 compliance. With a fixed 300 PSI set pressure, it provides a reliable discharge capacity of 44.8 lbs/min of air, making it suitable for use with HFC and HCFC refrigerants and their associated oils. The forged brass body and high-grade stainless steel springs ensure long-term structural integrity and consistent performance in demanding environments. This UV-certified pressure relief valve is essential for protecting receivers and high-pressure components from catastrophic failure. Its atmospheric discharge design and narrow blowdown characteristics minimize refrigerant loss while ensuring immediate system venting when the safety threshold is breached.
Key Technical Benefits
- NPT configurations: 1/2" Male Pipe Thread inlet and 3/4" Female Pipe Thread outlet for standard piping integration.
- 300 PSI set point: Factory-preset and sealed to prevent field tampering and ensure precise opening pressure.
- Operational compatibility: Fully rated for R-404A, R-134a, and R-507 refrigerant groups.
- Durability: Constructed with a reinforced brass body for corrosion resistance and thermal stability.
- Compliance standards: Manufactured in accordance with CRN (Canadian Registration Number) and ASME safety codes.
Common Questions
What is the discharge capacity of the Henry 5240-1/2-300?
This relief valve is rated for a discharge capacity of approximately 44.8 pounds of air per minute at a 300 PSI setting, ensuring rapid pressure equalization during an overpressure event.
Can this valve be used with ammonia systems?
No, the Henry 5240 series is constructed from brass, which is not compatible with ammonia (R-717). This valve is specifically designed for halocarbon-based refrigeration systems using HFCs or HCFCs.
Does this valve require field adjustment?
No, the relief valve set pressure is non-adjustable and factory-sealed to maintain the integrity of its ASME certification; any attempt to modify the setting will void its safety rating.
Notes
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $223.02
-65%$223.02
$78.06Henry Technologies 5240-1/2-300 Valve
The Henry Technologies 5240-1/2-300 Valve is a direct spring-action relief valve engineered for critical overpressure protection in industrial and commercial refrigeration systems. Featuring a 1/2 inch MPT inlet and a 3/4 inch FPT outlet, this high-capacity safety device is designed for ASME Section VIII, Division 1 compliance. With a fixed 300 PSI set pressure, it provides a reliable discharge capacity of 44.8 lbs/min of air, making it suitable for use with HFC and HCFC refrigerants and their associated oils. The forged brass body and high-grade stainless steel springs ensure long-term structural integrity and consistent performance in demanding environments. This UV-certified pressure relief valve is essential for protecting receivers and high-pressure components from catastrophic failure. Its atmospheric discharge design and narrow blowdown characteristics minimize refrigerant loss while ensuring immediate system venting when the safety threshold is breached.
Key Technical Benefits
- NPT configurations: 1/2" Male Pipe Thread inlet and 3/4" Female Pipe Thread outlet for standard piping integration.
- 300 PSI set point: Factory-preset and sealed to prevent field tampering and ensure precise opening pressure.
- Operational compatibility: Fully rated for R-404A, R-134a, and R-507 refrigerant groups.
- Durability: Constructed with a reinforced brass body for corrosion resistance and thermal stability.
- Compliance standards: Manufactured in accordance with CRN (Canadian Registration Number) and ASME safety codes.
Common Questions
What is the discharge capacity of the Henry 5240-1/2-300?
This relief valve is rated for a discharge capacity of approximately 44.8 pounds of air per minute at a 300 PSI setting, ensuring rapid pressure equalization during an overpressure event.
Can this valve be used with ammonia systems?
No, the Henry 5240 series is constructed from brass, which is not compatible with ammonia (R-717). This valve is specifically designed for halocarbon-based refrigeration systems using HFCs or HCFCs.
Does this valve require field adjustment?
No, the relief valve set pressure is non-adjustable and factory-sealed to maintain the integrity of its ASME certification; any attempt to modify the setting will void its safety rating.
Notes
Item is Non Cancelable / Non Returnable
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
