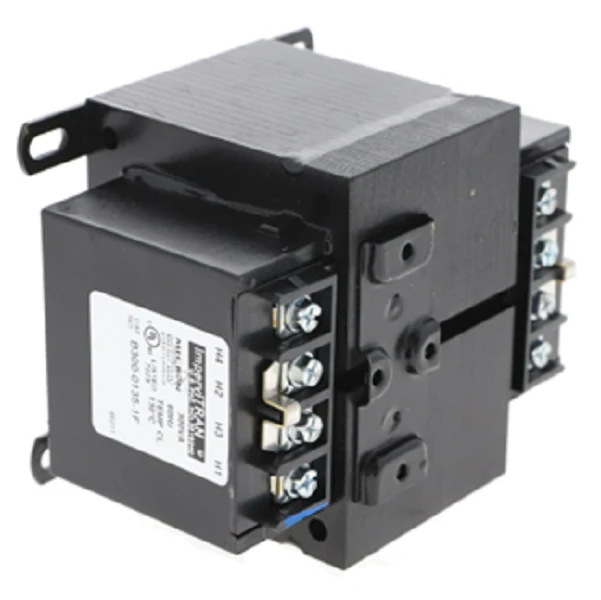

Heatcraft Refrigeration R038253919 Transformer
The Heatcraft Refrigeration R038253919 Transformer is a heavy-duty 300VA SL300QP control voltage solution engineered for commercial refrigeration and HVAC systems. Designed to handle consistent power loads, this multi-tap transformer provides reliable stepping of primary voltage down to secondary control levels, ensuring stable operation for contactors, solenoids, and low-voltage control circuits. When troubleshooting HVAC transformer failures, reliability is paramount; this unit features a robust core construction to minimize electromagnetic interference and thermal buildup. It is a direct replacement part for various Bohn, Larkin, and Chandler evaporator units and condensing systems. Field installation is streamlined via standard mounting footprints, making it an essential commercial refrigeration part for service trucks. Maintaining clean power across the control transformer wiring is critical for protecting sensitive system logic; this 300VA rated component provides the necessary headroom to prevent voltage drops during high-inrush cycles in industrial environments.
- 300VA Power Rating: Provides ample capacity for complex control strings and multiple heavy-duty contactors without overheating.
- Multi-Tap Versatility: Supports various primary input voltages common in commercial HVACR electrical systems.
- OEM Compatibility: Specifically engineered for Heatcraft Refrigeration systems to ensure precise electrical specifications are met.
- Durable Construction: Built to withstand the vibrating and high-humidity environments typical of mechanical rooms and walk-in coolers.
Common Questions
How do I determine if my 300VA transformer is failing?
Technicians should check for signs of buzzing, excessive heat, or a burnt odor. Use a multimeter to verify that the primary voltage is present and that the secondary output maintains its rated voltage under load.
Can I use an R038253919 to replace a lower VA rated transformer?
Yes, you can substitute a higher VA rated transformer like this 300VA model for a lower one (such as 150VA or 200VA), provided the primary and secondary voltage ratings match and the physical dimensions allow for safe mounting.
What causes a control transformer to trip or burn out?
Most failures result from a short circuit in the secondary side, such as a grounded contactor coil or a pinched wire. Always clear the short before installing the new Heatcraft transformer.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
