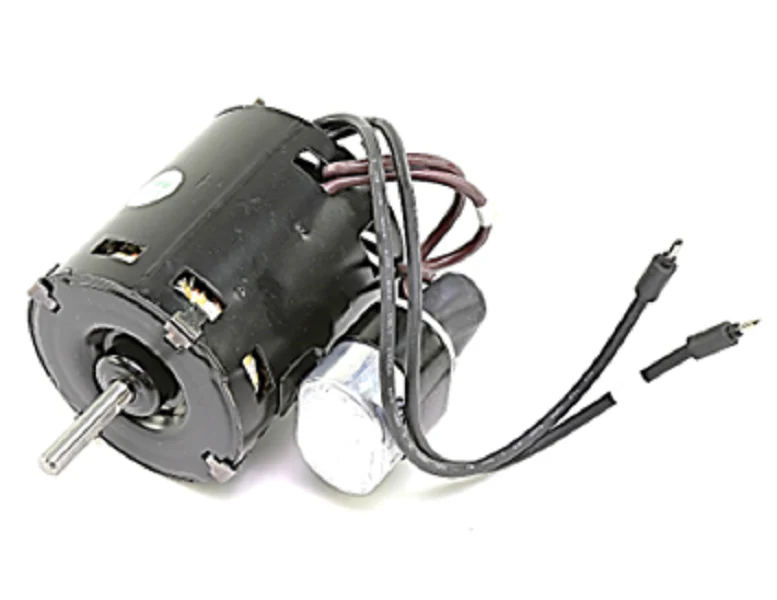

Heatcraft Refrigeration 5036PS Motor
The Heatcraft Refrigeration 5036PS Motor is a high-performance OEM replacement motor designed specifically for demanding commercial refrigeration applications. This 1/15 HP motor operates reliably at 208-230V and maintains a consistent 1550 RPM, making it the standard choice for Bohn, Larkin, and Chandler condensing units. Built with a 5/16 inch shaft and CWSE rotation, this PSC motor ensures optimal airflow and heat dissipation across condenser coils to prevent compressor overheating. As a veteran-grade HVACR replacement part, it features a robust 3.3-inch frame size and is rated for 50/60Hz, providing the electrical flexibility needed for various field installations. Whether you are servicing a walk-in cooler or a reach-in freezer, the Heatcraft 5036PS delivers the precise torque and thermal protection required to sustain continuous cooling cycles in high-ambient environments. Using this genuine Heatcraft condenser fan motor preserves system design integrity and long-term operational efficiency.
Key Benefits
- Direct OEM Compatibility: Engineered specifically for Heatcraft, Bohn, and Larkin refrigeration equipment to ensure a precise mechanical fit.
- Optimized Heat Dissipation: The 1550 RPM speed rating provides superior airflow across coils for better thermal management.
- Dual Frequency Versatility: Rated for both 50Hz and 60Hz, allowing for standardized stocking across different regional power grids.
- Industrial Build Quality: Features high-grade insulation and durable housing to withstand the moisture and temperature fluctuations of commercial kitchens.
Common Questions
What is the shaft size and rotation for the Heatcraft 5036PS?
This motor features a 5/16" diameter shaft and is configured for Clockwise Shaft End (CWSE) rotation, which is the standard setup for most compatible Heatcraft condensing units.
Can I use the 5036PS motor in 115V systems?
No, this motor is specifically wound for 208-230V operation. Attempting to run it on 115V will result in insufficient torque and motor failure.
Is this motor compatible with Bohn evaporator units?
While primarily used in condensing units, the Heatcraft 5036PS is a universal replacement for many 1/15HP applications within the Heatcraft family of brands, provided the RPM and mounting match your existing specs.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $235.41
-65%$235.41
$82.39Heatcraft Refrigeration 5036PS Motor
The Heatcraft Refrigeration 5036PS Motor is a high-performance OEM replacement motor designed specifically for demanding commercial refrigeration applications. This 1/15 HP motor operates reliably at 208-230V and maintains a consistent 1550 RPM, making it the standard choice for Bohn, Larkin, and Chandler condensing units. Built with a 5/16 inch shaft and CWSE rotation, this PSC motor ensures optimal airflow and heat dissipation across condenser coils to prevent compressor overheating. As a veteran-grade HVACR replacement part, it features a robust 3.3-inch frame size and is rated for 50/60Hz, providing the electrical flexibility needed for various field installations. Whether you are servicing a walk-in cooler or a reach-in freezer, the Heatcraft 5036PS delivers the precise torque and thermal protection required to sustain continuous cooling cycles in high-ambient environments. Using this genuine Heatcraft condenser fan motor preserves system design integrity and long-term operational efficiency.
Key Benefits
- Direct OEM Compatibility: Engineered specifically for Heatcraft, Bohn, and Larkin refrigeration equipment to ensure a precise mechanical fit.
- Optimized Heat Dissipation: The 1550 RPM speed rating provides superior airflow across coils for better thermal management.
- Dual Frequency Versatility: Rated for both 50Hz and 60Hz, allowing for standardized stocking across different regional power grids.
- Industrial Build Quality: Features high-grade insulation and durable housing to withstand the moisture and temperature fluctuations of commercial kitchens.
Common Questions
What is the shaft size and rotation for the Heatcraft 5036PS?
This motor features a 5/16" diameter shaft and is configured for Clockwise Shaft End (CWSE) rotation, which is the standard setup for most compatible Heatcraft condensing units.
Can I use the 5036PS motor in 115V systems?
No, this motor is specifically wound for 208-230V operation. Attempting to run it on 115V will result in insufficient torque and motor failure.
Is this motor compatible with Bohn evaporator units?
While primarily used in condensing units, the Heatcraft 5036PS is a universal replacement for many 1/15HP applications within the Heatcraft family of brands, provided the RPM and mounting match your existing specs.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
