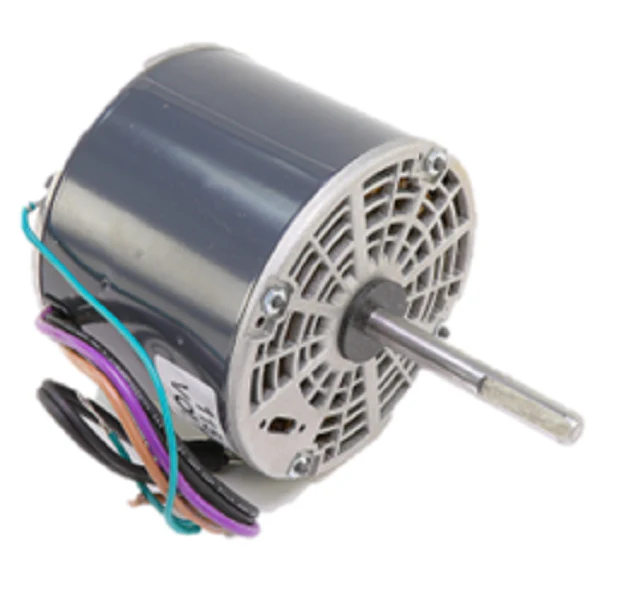

Heatcraft Refrigeration 5020SS Motor
The Heatcraft Refrigeration 5020SS Motor is a high-performance direct drive blower motor engineered for reliability in commercial refrigeration systems. This 1/4 HP 115V motor operates at 1075 RPM, providing consistent airflow for evaporator units and condenser applications. Designed with a CWSE rotation (Clockwise Shaft End), this PSC motor features a 5-inch diameter frame, ensuring compatibility with various Heatcraft, Bohn, and Chandler equipment. The permanent split capacitor design enhances electrical efficiency, while the 1.0 service factor and automatic thermal overload protection ensure continuous operation under demanding thermal loads. For contractors replacing failed fan motors, this OEM replacement motor offers the mechanical precision required for maintaining tight temperature tolerances in walk-in coolers and freezers.
- Optimized Performance: Operates at a steady 1075 RPM for balanced static pressure and CFM delivery.
- Drop-in Compatibility: Standard 48-frame motor equivalent with specialized mounting configurations for Heatcraft brackets.
- Durable Construction: Built for high-cycle environments common in cold storage and commercial kitchens.
- Electrical Efficiency: 115V single-phase power draw optimized for existing control boards and contactors.
Common Questions
What capacitor is required for the Heatcraft 5020SS?
This motor typically requires a 5 MFD / 370V run capacitor to ensure proper torque and amperage draw during startup and operation.
Can this motor replace a multi-speed blower motor?
The 5020SS is a single-speed motor; ensure your system wiring is configured for single-speed operation before bypassing multi-speed taps.
Does this motor include the fan blade or mounting base?
This is a standalone motor. It is recommended to verify the shaft diameter and length to ensure your existing fan blade hub fits securely.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
