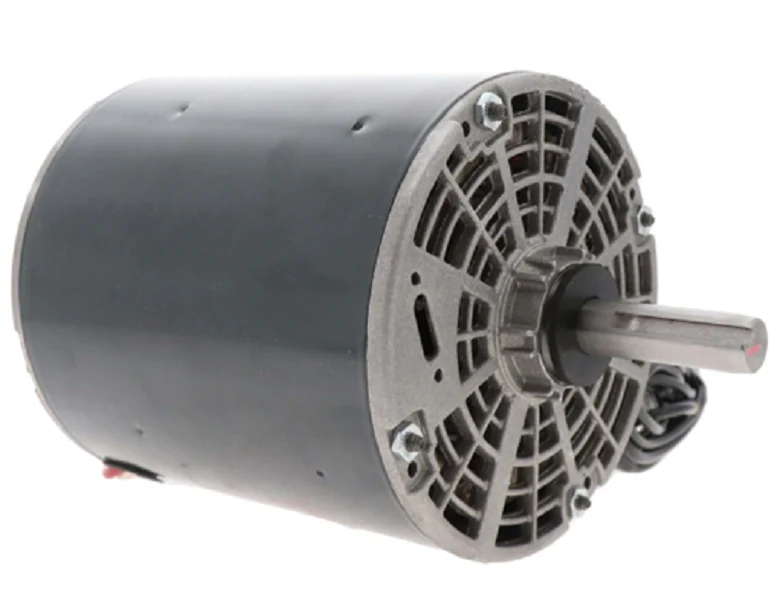

Heatcraft Refrigeration 5002PS Motor
The Heatcraft Refrigeration 5002PS Motor is a high-performance direct drive permanent split capacitor motor designed for reliable operation in commercial refrigeration units. Operating at 1/2 HP and a 1075 RPM fixed speed, this condenser fan motor is engineered for 208-230V 60Hz single-phase applications. It features a CWSE (Clockwise Shaft End) rotation and is built with durable ball bearings to ensure long-term thermal stability in demanding environments. This motor is a standard OEM replacement motor for Heatcraft, Bohn, and Larkin evaporators and condensing units, offering precise compatibility with 48-frame mounting configurations. With its thermally protected design and high-grade insulation, the 5002PS maintains efficiency during high-cycle operations, making it a critical component for technicians maintaining optimal head pressure and airflow in cold storage systems. Proper capacitor matching is essential to ensure rated torque and amperage draw stay within specification.
- Universal HVACR Compatibility: Direct fit for most Heatcraft-family brands, reducing downtime during field repairs.
- High Efficiency 1075 RPM: Optimized for consistent airflow across condenser coils to improve heat transfer rates.
- Industrial Build Quality: Features deep-groove ball bearings for horizontal or vertical shaft orientations.
- Simplified Wiring: Standard 48-frame design with clear lead identification for rapid installation in the field.
Common Questions
What capacitor is required for the Heatcraft 5002PS?
This 1/2 HP motor typically requires a 7.5 MFD or 10 MFD 370V run capacitor; always verify the rating on the physical nameplate before energizing the circuit.
Can this motor replace a 1075 RPM sleeve bearing motor?
Yes, the ball bearing construction of the 5002PS is an upgrade over sleeve bearings, allowing for longer life and better performance in varied temperatures.
How do I confirm the rotation of this motor?
The 5002PS is CWSE (Clockwise Shaft End). This means when looking directly at the shaft side of the motor, it rotates in a clockwise direction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
