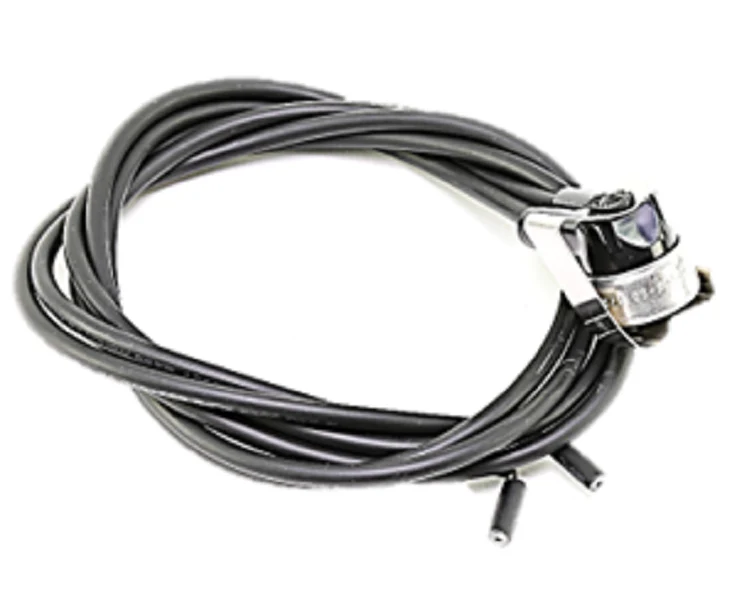

Heatcraft Refrigeration 30101701 Limit
The Heatcraft Refrigeration 30101701 is a commercial-grade discharge line freeze thermostat engineered for high-limit protection in condensing units and cold storage systems. This technical-grade limit control is specifically calibrated with a 210F limit and a 50F differential to prevent compressor overheating and protect critical refrigeration components. As a genuine Heatcraft OEM part, it ensures direct compatibility with Bohn, Larkin, and Climate Control equipment, specifically designed for use on 3 to 22 HP condensing units like the BDN0300 and BDN0400 series.
For service technicians, this high temperature limit switch provides precise actuation to maintain system stability. When the discharge line temperature reaches the 210?F set point, the switch opens to break the control circuit, resetting only after the temperature drops by the 50?F differential. This prevents short-cycling while ensuring the scroll compressor operates within safe thermal parameters. Incorporating this HVAC freeze stat into your preventative maintenance routine minimizes the risk of catastrophic system failure and preserves the integrity of the refrigeration cycle.
Key Benefits for Technicians:
- OEM Fit and Reliability: Direct replacement for Heatcraft 30101701 ensures seamless mounting on the discharge line with original lead lengths.
- Thermal Protection: Prevents discharge gas from reaching temperatures that degrade compressor oil and damage internal valves.
- Rugged Construction: Built for the high-vibration environment of commercial condensing unit platforms.
- Fixed Calibration: Factory-set 210 degree limit and 50 degree differential eliminate field adjustment errors.
Common Questions:
What is the primary function of the Heatcraft 30101701?
It acts as a safety limit on the compressor discharge line, cutting power to the contactor if temperatures exceed 210?F to prevent equipment damage.
Which systems are compatible with this limit control?
It is utilized across Heatcraft Refrigeration brands, including Bohn and Larkin, primarily on medium to large scale condensing units ranging from 3 to 22 HP.
Does this part require manual resetting?
No, this is an automatic reset limit that closes once the temperature falls below 160?F (the 210?F limit minus the 50?F differential).
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
