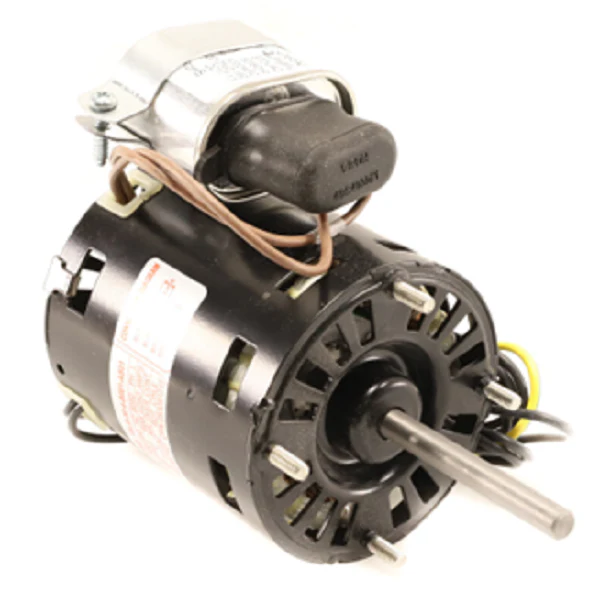

Heatcraft Refrigeration 25309101S Motor
The Heatcraft Refrigeration 25309101S Motor is a high-performance 1/15 HP condenser fan motor engineered for commercial refrigeration systems, including Bohn, Larkin, and Climate Control units. Operating at 208-230V and 1550/1400 RPM, this single-phase PSC motor provides consistent airflow to prevent system overheating and maintain head pressure. Designed for industrial durability, it features a 5/16-inch shaft and is a direct OEM replacement for models like the 25309101, ensuring it fits into existing brackets without field modifications. Whether you are servicing an air-cooled condenser or a walk-in cooler, this 1550 RPM motor delivers the torque and thermal protection needed for continuous operation in demanding environments. This Heatcraft condenser motor is the standard for technicians who prioritize exact-fit compatibility and factory-spec performance over generic alternatives.
Key Benefits- Direct OEM Compatibility: Replaces Heatcraft 253-09101 and Bohn 5008S/5008T with zero mounting adjustments.
- Engineered for Resilience: Built with high-grade materials to withstand the high-cycle demands of commercial refrigeration.
- Optimized Performance: Specifically tuned for 1550 RPM to provide targeted cooling for condenser coils.
- Simplified Installation: Standard 5/16" shaft diameter and compact frame design allow for fast swap-outs in the field.
Is this motor reversible?
While some aftermarket versions are reversible, this Heatcraft 25309101S OEM replacement is typically factory-set for CW or CCW rotation depending on the specific system requirement; always verify the rotation of your existing fan blade before installation.
Does this include the capacitor?
This Permanent Split Capacitor (PSC) motor often requires a 3 MFD x 370V capacitor for operation; technicians should verify if the existing capacitor meets these specs or needs replacement during the motor swap.
Can I use this in an evaporator application?
This motor is primarily designed as a condenser fan motor. Ensure the enclosure type and RPM match your specific evaporator requirements before attempting to cross-reference it for that use case.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $237.48
-65%$237.48
$83.12Heatcraft Refrigeration 25309101S Motor
The Heatcraft Refrigeration 25309101S Motor is a high-performance 1/15 HP condenser fan motor engineered for commercial refrigeration systems, including Bohn, Larkin, and Climate Control units. Operating at 208-230V and 1550/1400 RPM, this single-phase PSC motor provides consistent airflow to prevent system overheating and maintain head pressure. Designed for industrial durability, it features a 5/16-inch shaft and is a direct OEM replacement for models like the 25309101, ensuring it fits into existing brackets without field modifications. Whether you are servicing an air-cooled condenser or a walk-in cooler, this 1550 RPM motor delivers the torque and thermal protection needed for continuous operation in demanding environments. This Heatcraft condenser motor is the standard for technicians who prioritize exact-fit compatibility and factory-spec performance over generic alternatives.
Key Benefits- Direct OEM Compatibility: Replaces Heatcraft 253-09101 and Bohn 5008S/5008T with zero mounting adjustments.
- Engineered for Resilience: Built with high-grade materials to withstand the high-cycle demands of commercial refrigeration.
- Optimized Performance: Specifically tuned for 1550 RPM to provide targeted cooling for condenser coils.
- Simplified Installation: Standard 5/16" shaft diameter and compact frame design allow for fast swap-outs in the field.
Is this motor reversible?
While some aftermarket versions are reversible, this Heatcraft 25309101S OEM replacement is typically factory-set for CW or CCW rotation depending on the specific system requirement; always verify the rotation of your existing fan blade before installation.
Does this include the capacitor?
This Permanent Split Capacitor (PSC) motor often requires a 3 MFD x 370V capacitor for operation; technicians should verify if the existing capacitor meets these specs or needs replacement during the motor swap.
Can I use this in an evaporator application?
This motor is primarily designed as a condenser fan motor. Ensure the enclosure type and RPM match your specific evaporator requirements before attempting to cross-reference it for that use case.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
