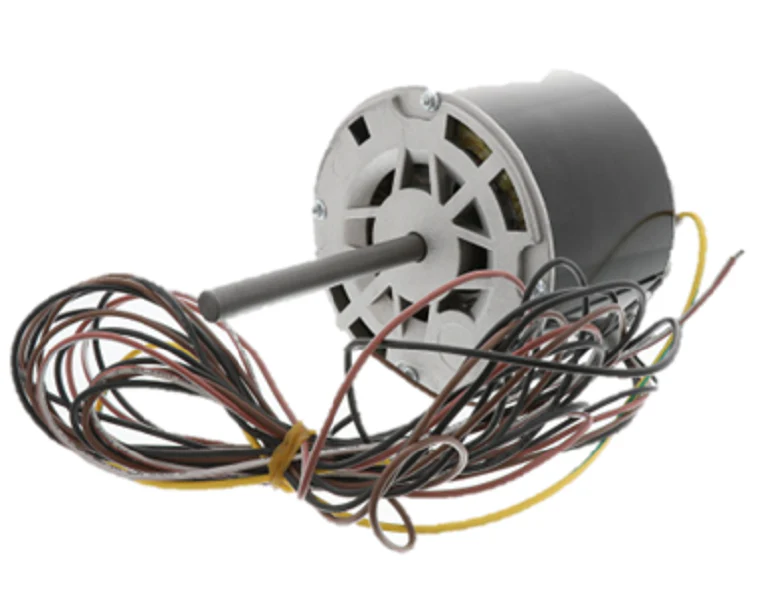

Heatcraft Refrigeration 25309004S Motor
The Heatcraft Refrigeration 25309004S Motor is a high-performance 1/3 HP condenser fan motor engineered specifically for commercial refrigeration duty. Operating at 208-230V single-phase, this 1075 RPM refrigeration motor features a NEMA 48Y frame and a 1/2-inch shaft diameter, ensuring a direct-drop replacement for Interlink and Heatcraft unit coolers. Its Permanent Split Capacitor (PSC) design provides high electrical efficiency and reliable continuous duty (S1) operation under heavy thermal loads. Constructed with a rolled steel frame and an aluminum flange, this motor resists corrosion in damp environments common to walk-in coolers and industrial freezers. Professionals rely on this OEM replacement motor for its CCWOSE rotation and 50/60Hz dual-frequency compatibility, which simplifies inventory for multi-region service contracts while maintaining precise system AWEF ratings and airflow specifications.
Key Benefits:
- OEM Precision: Genuine Heatcraft 25309004S part ensures exact physical dimensions and mounting alignment for rapid field installation.
- Durable Construction: Features a moisture-resistant rolled steel housing and aluminum components for longevity in high-humidity evaporator and condenser applications.
- Optimized Efficiency: The 1075 RPM speed is calibrated to meet strict airflow requirements, preserving the cooling capacity of the refrigeration circuit.
- Broad Compatibility: Supports a wide range of Heatcraft, Bohn, and Larkin equipment, reducing the need for universal motor modifications.
Common Questions:
What is the direction of rotation for this motor?
The 25309004S is a CCWOSE (Counter-Clockwise Opposite Shaft End) rotation motor, which is the standard for most Heatcraft axial fan blade configurations.
Can I use this motor in a 50Hz environment?
Yes, this motor is rated for 50/60Hz dual-frequency, making it versatile for various power supplies while maintaining performance stability.
Is a capacitor required for installation?
As a PSC motor, it requires a run capacitor (typically 5 MFD/370V, though you should verify the specific rating on the motor nameplate) to ensure proper torque and efficiency.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $398.72
-65%$398.72
$139.55Heatcraft Refrigeration 25309004S Motor
