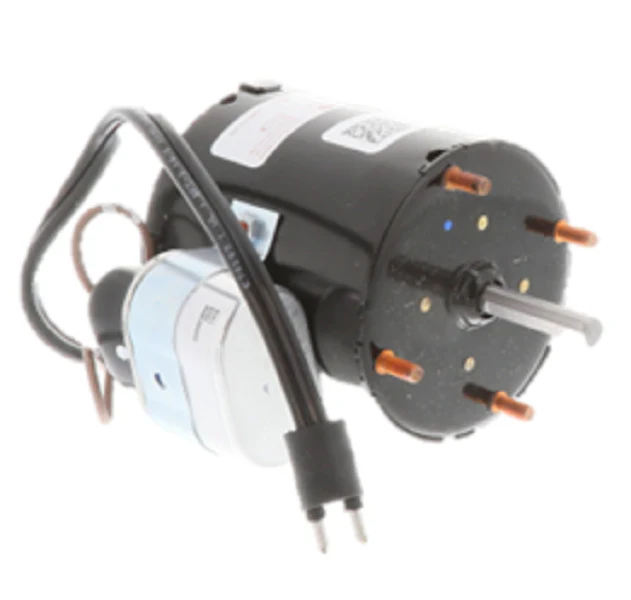

Heatcraft Refrigeration 25308301S Motor
The Heatcraft 25308301S Fan Motor is a critical OEM replacement motor designed for high-performance commercial refrigeration systems. This 1/15 HP motor operates on a 208-230V single-phase power supply, providing the necessary torque for demanding condenser and evaporator applications. Engineered for versatility, this unit features a dual-speed 1300/1600 RPM configuration and is compatible with both 50Hz and 60Hz electrical frequencies. Proper heat dissipation is maintained through a CCWOSE rotation (Counterclockwise When Seen Opposite Shaft End), ensuring precise airflow across the heat exchanger coils to prevent high-head pressure trips. When replacing a failed Heatcraft refrigeration motor, using a genuine 25308301S ensures the mounting profile and electrical lead placement align perfectly with the original cabinet specifications, reducing labor time during service calls. This motor is built to withstand the continuous duty cycles required in walk-in coolers and commercial condensing units.
Key Professional Benefits
- OEM Compatibility: Precision-matched for Heatcraft, Bohn, Latham, and Chandler refrigeration equipment.
- Dual-Speed Flux: 1300/1600 RPM capability allows for fine-tuning system airflow characteristics.
- Universal Frequency: Operates efficiently at both 50Hz and 60Hz for varied regional power grids.
- Thermal Protection: Engineered to maintain stable operating temperatures under high-static load conditions.
- Direct Fit: Eliminates the need for bracket modifications or shaft adjustments in the field.
Project Specifications & Troubleshooting
What is the rotation direction for the 25308301S?
This motor utilizes a CCWOSE (Counterclockwise Opposite Shaft End) rotation. Always verify the fan blade pitch matches this rotation to ensure proper directional airflow and to avoid motor burnout.
Can this motor replace a single-speed 1/15 HP motor?
Yes, the 25308301S can be utilized in single-speed applications by wiring for the specific RPM required by the system design, provided the voltage and frame size match.
What are the electrical requirements for installation?
This is a 208-230V, 1PH motor. Ensure that the supply voltage matches the rating plate and that all wiring follows the schematic for the desired speed setting to prevent winding damage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
