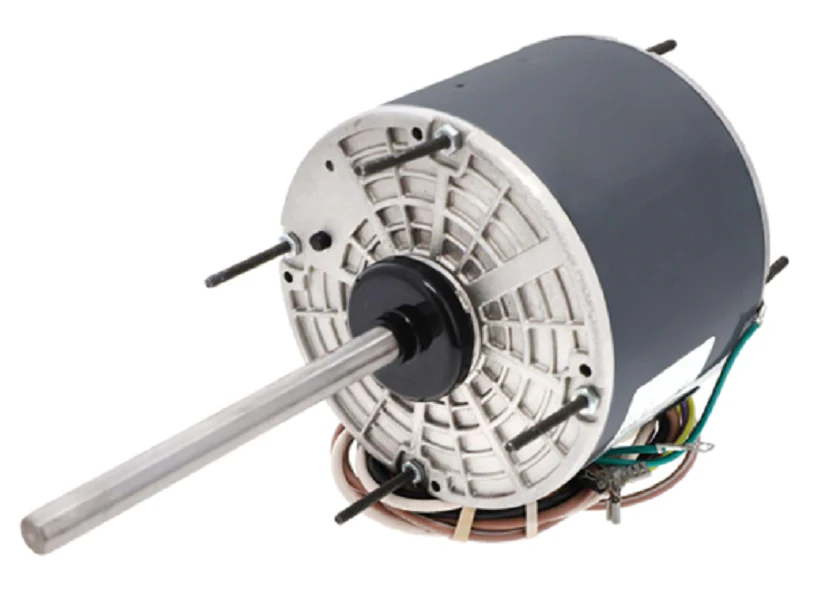

Heatcraft Refrigeration 25308101 Motor
The Heatcraft Refrigeration 25308101 is a direct-drive PSC (Permanent Split Capacitor) motor designed for commercial refrigeration evaporators and condenser units. Operating at 208-230V single-phase, this 1/4 HP motor delivers a steady 1075 RPM to maintain consistent airflow across the coil. Engineered for compatibility with Bohn, Larkin, Climate Control, and Chandler equipment, this multimount motor features a standard shaft diameter and TEAO (Totally Enclosed Air Over) housing to protect internal components from moisture in high-humidity environments. Its ball bearing design ensures long-term reliability and high heat dissipation under continuous load. When replacing older units, verify your run capacitor requirements and lead lengths to ensure a seamless drop-in fit. This OEM replacement motor is the industry standard for Heatcraft refrigeration motors, providing the torque needed for demanding HVACR motor applications while maintaining electrical efficiency across the service life of the walk-in cooler or freezer.
- Universal Compatibility: Direct replacement for several Heatcraft brands including Bohn and Larkin.
- Industrial Build: TEAO enclosure and ball bearings prevent premature failure in damp refrigeration cycles.
- Consistent Performance: 1075 RPM rated speed provides optimal static pressure for evaporator fans.
- Efficient Integration: Reversible rotation and standard mounting patterns simplify field installation.
Common Technical Questions
What is the frame size and shaft diameter of the 25308101?
This motor typically utilizes a 48-frame geometry with a standard 1/2-inch shaft, though you should confirm the specific hub-to-hub dimensions of your existing bracket before installation.
Can this motor be used in both freezer and cooler applications?
Yes, as long as the motor is located within the airflow (Air Over) and the ambient temperature remains within the Class B insulation limits common for commercial refrigeration units.
Does this motor require a specific capacitor?
Most 1/4 HP 1075 RPM PSC motors in this class require a 5 MFD or 7.5 MFD 370V capacitor; check the motor nameplate for specific microfarad requirements to ensure proper starting torque.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
