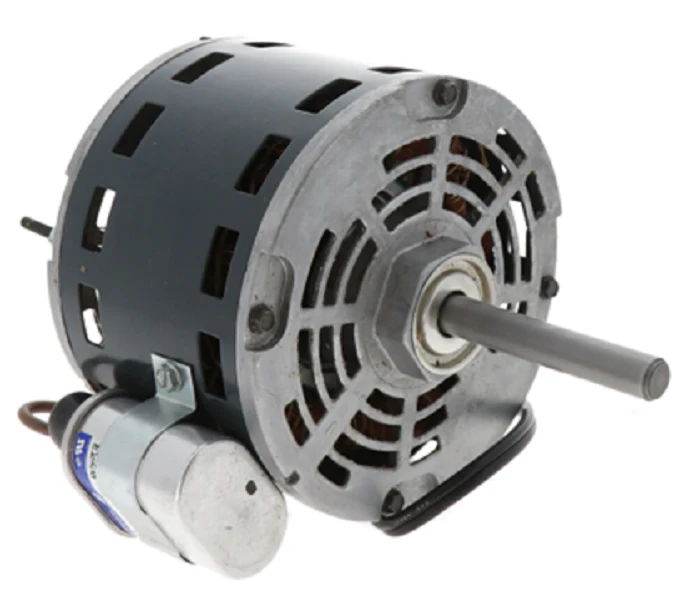

Heatcraft Refrigeration 2530688S Motor
The Heatcraft Refrigeration 2530688S Motor is a high-performance OEM replacement motor engineered for mission-critical commercial refrigeration systems. This 115V 1075 RPM motor features a 1/10 HP output, delivering consistent airflow for evaporator and condenser units within Bohn, Larkin, Climate Control, and Chandler equipment. Designed as a Permanent Split Capacitor (PSC) motor, it ensures high electrical efficiency and steady torque under continuous (S1) duty cycles. Its 1/2 inch shaft diameter and CW rotation (shaft end view) allow for precise compatibility with standard fan blades in walk-in coolers and reach-in freezers. Built with Class B insulation and an open enclosure, this motor is optimized for heat dissipation in demanding environments. For contractors, the Interlink 2530688S represents a reliable drop-in solution that maintains system pressure and thermal exchange rates to prevent compressor strain and inventory loss.
Key Benefits
- OEM Compatibility: Precision-engineered for Bohn refrigeration and Larkin event units, ensuring direct fitment without field modifications.
- Enhanced Efficiency: The PSC motor design reduces amperage draw at 1.3 Amps, optimizing energy consumption in 24/7 refrigeration cycles.
- Rugged Construction: Features all-steel and copper components with a 10.5-inch body length for durability in high-moisture evaporator environments.
- Universal 50/60Hz Operation: Designed to maintain performance across varied power supply frequencies, providing versatility for various site conditions.
Common Questions
What are the primary applications for the Heatcraft 2530688S?
This motor is commonly used in low-profile unit coolers and commercial condensers manufactured by Heatcraft’s six major brands (Bohn, Larkin, etc.). It drives the fan blades responsible for heat transfer across the refrigeration coils.
Can I use this to replace a CCW rotation motor?
No, this specific model is indexed for Clockwise (CW) rotation from the shaft end. Always verify the rotation of your existing blower or fan blade to ensure the motor pulls or pushes air in the correct direction for your cabinet design.
Does this motor include the capacitor?
As a single-phase PSC motor, it requires a capacitor for operation. While some Heatcraft 2530688S packages are motor-only, technicians should always verify the capacitance requirements on the nameplate and replace the capacitor during installation to ensure optimal startup torque.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
