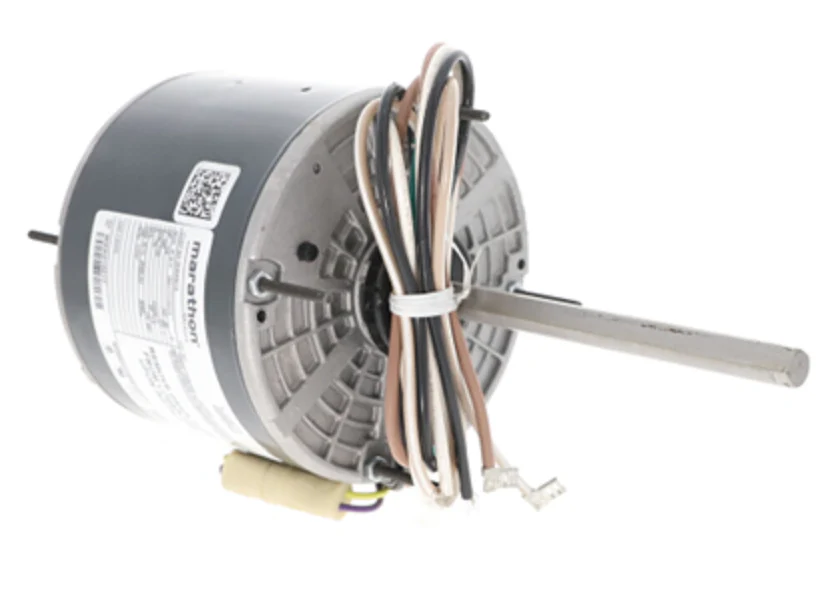

Heatcraft Refrigeration 25304601S Motor
The Heatcraft Refrigeration 25304601S Motor is a heavy-duty, factory-specified replacement designed for industrial-grade unit coolers and commercial refrigeration systems. This 460V 1/4 HP motor is engineered to withstand the demanding duty cycles of walk-in coolers and freezers, operating at a nominal 1145 RPM to maintain high-static pressure airflow and consistent heat transfer across the evaporator coils. As a genuine Heatcraft OEM motor, it ensures precise mechanical alignment with existing fan blades and mounting brackets, eliminating the field-modification risks associated with generic alternatives.
Built for long-term service in harsh environments, this single-phase condenser fan motor features a robust internal construction to handle voltage fluctuations and continuous thermal stress. Its 460V refrigeration motor configuration is ideal for three-phase facility power distribution where high-voltage single-phase legs are utilized for auxiliary components. By maintaining the specific 1145 RPM speed, technicians can restore the system to its original CFM ratings, ensuring that defrost cycles and cooling performance remain within design parameters.
Key Benefits:
- Direct OEM Integration: Exact replacement for Heatcraft 25304601S, ensuring a perfect drop-in fit for Bohn, Larkin, and Climate Control units.
- Optimized Airflow: The 1145 RPM 1/4 HP rating is calibrated to pull air efficiently through dense evaporator fins without overloading the circuit.
- High-Voltage Efficiency: Rated for 460V 1PH operation, making it suitable for large-scale commercial and industrial refrigeration footprints.
- Rugged Durability: Engineered to resist the moisture and temperature extremes typical of commercial HVACR applications.
Common Questions:
Is a capacitor required for this motor?
Yes, this PSC (Permanent Split Capacitor) motor typically requires a 7.5 MFD run capacitor (e.g., Heatcraft 22511601) for proper starting torque and efficiency. Always check the nameplate on the specific unit for capacitor requirements.
Can I use this motor to replace a 230V model?
No, this is a 460V motor. Installing it on a 230V system will result in failure to start or insufficient torque, while applying 460V to a lower-rated motor will cause immediate winding failure.
What equipment brands use this part?
This motor is widely used across the Heatcraft umbrella, including Bohn, Larkin, Chandler, and Climate Control refrigeration equipment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
