Heatcraft Refrigeration 22900501 Blade

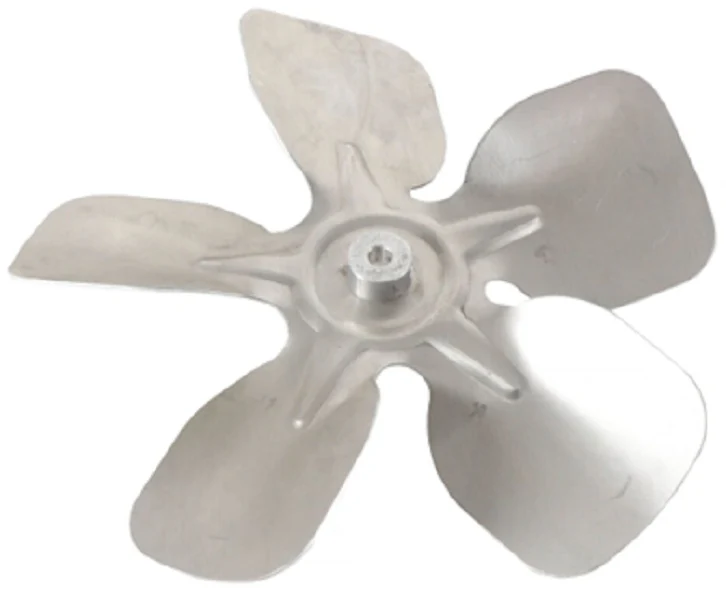

The Heatcraft Refrigeration 22900501 Blade is a precision-engineered 10-inch condenser fan blade designed for critical thermal management in commercial refrigeration systems. Featuring a 5-blade configuration with a 30-degree pitch, this component is optimized for Clockwise (CW) rotation to ensure maximum CFM delivery across condenser coils. Fabricated from high-grade aluminum, it provides the structural rigidity necessary to resist blade deformation under high static pressure. This Heatcraft OEM replacement fan blade is commonly found in Bohn, Chandler, and Larkin remote condensers, where maintaining specific airflow patterns is essential for compressor longevity and optimal heat rejection. Precise balance reduces vibration, protecting the motor bearings and minimizing acoustic output during heavy duty cycles. When performing a condenser motor repair, verifying the Bohn fan blade 10 inch specifications and pitch angle is vital to prevent motor overloading and ensure the refrigeration rack maintains target head pressure in demanding environments.
- Optimized Airflow: The 30-degree pitch angle ensures efficient heat exchange for commercial refrigeration condensers.
- OEM Compatibility: Exact drop-in replacement for Heatcraft part 22900501, maintaining original equipment performance standards.
- Durable Construction: Lightweight aluminum design resists corrosion and reduces the starting torque load on the fan motor.
- Vibration Reduction: Factory-balanced 5-blade assembly prevents mechanical fatigue in refrigeration fan motors.
Common Questions
How do I verify the rotation for this Heatcraft blade?
This blade is designed for Clockwise (CW) rotation. When viewing the blade from the discharge side (facing the air moving toward you), the leading edge must rotate clockwise to pull air correctly through the coil.
Can I use a 22900501 blade on a motor with a different horsepower rating?
As long as the shaft diameter matches and the motor is rated for the 30-degree pitch load at the specified RPM, it will function. However, using this on an underpowered motor can lead to winding failure due to the 5-blade air resistance.
What are the symptoms of a failing condenser fan blade?
Excessive vibration, increased noise levels, or visible stress fractures on the hub are indicators that a replacement is required to avoid catastrophic failure and potential damage to the condenser coil.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $24.78
-65%$24.78
$8.67Heatcraft Refrigeration 22900501 Blade
