Heatcraft Refrigeration 22900101 Blade

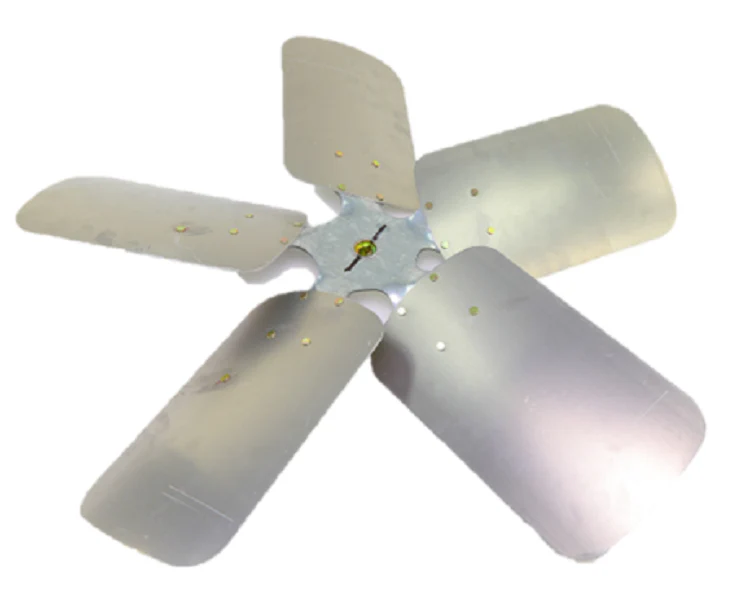

The Heatcraft 22900101 Fan Blade is a critical replacement component designed for commercial refrigeration condensers and evaporator units. This 30-inch diameter fan blade features a 5-blade configuration with a 24-degree pitch, optimized for high-volume airflow and static pressure efficiency. Built for clockwise (CW) rotation, it utilizes a 5/8-inch bore for direct mounting to standard HVAC motor shafts. When replacing Heatcraft refrigeration parts, matching the exact blade pitch is essential to maintain the compressor's thermal load capacity and prevent motor overload. This heavy-duty aluminum blade is engineered to withstand the rigorous duty cycles of walk-in coolers and industrial chillers, ensuring consistent refrigerant heat exchange. It serves as a direct drop-in for various Bohn, Larkin, and Chandler units, providing the OEM airflow performance required to maintain precise temperature setpoints in demanding environments.
Key Benefits
- Precision Balanced: Minimized vibration reduces mechanical stress on the fan motor bearings and housing.
- Optimized Pitch: The 24-degree angle provides the ideal balance between CFM output and amperage draw.
- Corrosion Resistance: Constructed from high-grade materials to hold up against moisture and harsh refrigeration environments.
- OEM Compatibility: Ensures seamless integration with Heatcraft condensing units without needing shaft modifications.
Common Questions
Is this blade compatible with CCW motors?
No, the Heatcraft 22900101 is designed strictly for Clockwise (CW) rotation. Installing this on a counter-clockwise motor will result in improper airflow and potential system failure.
What is the importance of the 24-degree pitch?
The blade pitch determines the amount of air moved per revolution. A 24-degree pitch is calibrated for specific static pressure requirements; using an incorrect pitch can lead to high head pressure or motor burnout.
Will this fit a 1/2-inch motor shaft?
This specific model features a 5/8-inch bore. If your motor has a 1/2-inch shaft, you would require a reducing bushing or, preferably, the correct 1/2-inch bore equivalent to ensure structural integrity.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
