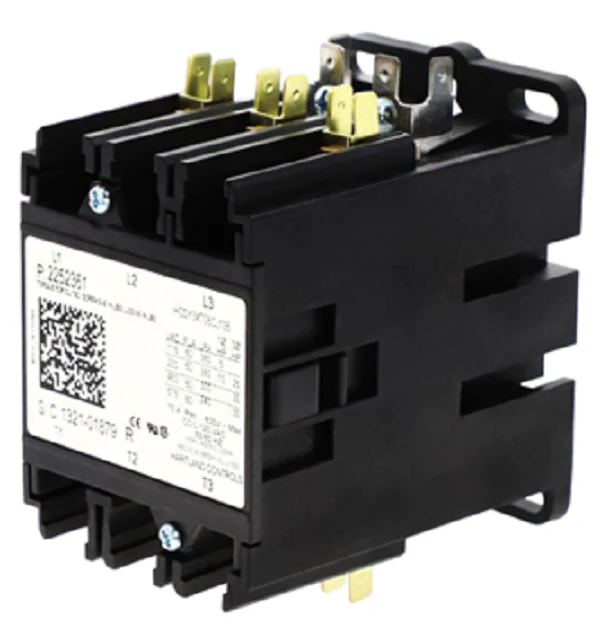

Heatcraft Refrigeration 2252361 Contactor
The Heatcraft Refrigeration 2252361 Contactor is a heavy-duty definite purpose contactor designed for rigorous commercial refrigeration and HVAC applications. Engineered with a 120V coil and a 3 pole configuration, this component is built to handle high-demand electrical loads up to 60 FLA (Full Load Amps) and 75 RES (Resistive Amps). The silver cadmium oxide contacts provide superior arc resistance and long-term conductivity, ensuring reliable switching for compressors, motors, and heating elements. This 60A contactor features a universal mounting base for seamless integration into existing Heatcraft condensing units or as a high-performance HVAC replacement part. With its box lug terminations and compact frame, it offers clean, straight-through wiring for faster field installations and reduced diagnostic time. Designed to operate across a broad temperature range, it serves as a critical electrical control component for maintaining system uptime in demanding industrial environments.
Key Benefits- High Load Capacity: Rated for 60 Amps FLA and 75 Amps resistive, making it ideal for large-scale refrigeration compressors.
- Reliable Switching: Features 3-pole normally open contacts with a 110/120V AC coil for consistent performance under heavy cycles.
- Enhanced Durability: Equipped with industrial-grade silver cadmium oxide contacts to prevent welding and pitting during high-inrush starts.
- Universal Compatibility: Standardized mounting footprint allows it to replace various OEM contactors in both refrigeration and air conditioning systems.
- Easy Installation: Utilizes box lug terminals for secure, high-torque electrical connections that won't vibrate loose.
What is the difference between FLA and RES ratings on this contactor?
The 60A Full Load Amperage (FLA) rating applies to motor-driven loads like compressors, while the 75A Resistive (RES) rating refers to non-inductive loads such as electric heaters.
Can I use this 120V contactor to replace a 240V model?
No. The coil voltage must match your control circuit. This specific model requires a 120V control signal to pull in the armature; using a different voltage will damage the coil or prevent the unit from firing.
Is this contactor suitable for three-phase equipment?
Yes, the 3-pole design is specifically intended for switching three-phase power, though it can also be used for single-phase systems by utilizing only two of the poles.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
