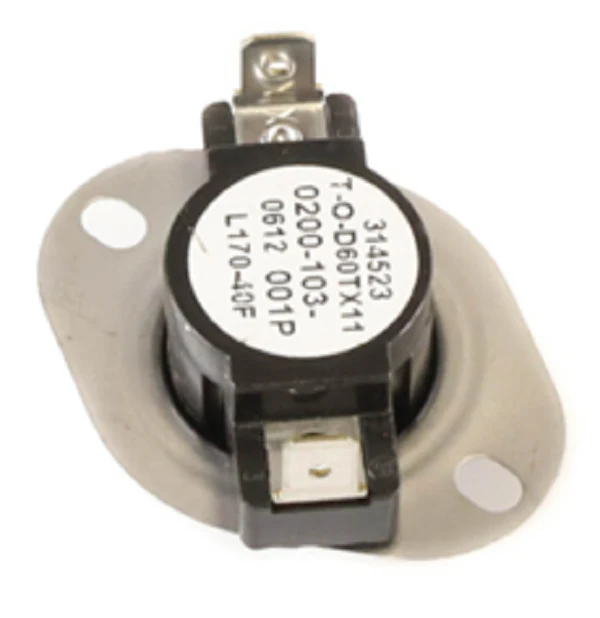

Heat Controller R68CA0003 Limit Switch
The Heat Controller R68CA0003 Limit Switch is a critical HVAC safety control designed to prevent heat exchanger damage in gas-fired furnaces and air handlers. This L170-40F limit switch features a 170?F trip point, automatically breaking the electrical circuit if internal plenum temperatures exceed safety thresholds to prevent overheating. Once the system cools to 40?F, the auto-reset limit switch restores continuity, allowing the heating cycle to resume. Engineered as a direct OEM replacement part for diverse Heat Controller and Nordyne equipment, the R68CA0003 ensures precise thermal monitoring. The robust bimetal sensing element provides reliable performance in high-cycle environments, while the 1/4-inch male spade quick-connect terminals and 1/4-20 threaded stud mount simplify field installation for contractors. Integrating this high-limit switch into your maintenance routine protects against restricted airflow issues caused by clogged filters or blower failure, maintaining system integrity and operational efficiency.
Key Benefits
- High-Limit Protection: Prevents critical furnace overheating by interrupting the burner circuit at a precise 170?F threshold.
- Universal Compatibility: Serves as a standard L170-40F replacement for many Mars/Heat Controller and Nortek branded systems.
- Automatic Reset: Features a wide 130?F differential, ensuring the system resets safely at 40?F without manual intervention.
- Industrial Durability: Constructed with a zinc-plated steel housing and heavy-duty bimetal sensors for long-term reliability in thermal cycling.
- Simplified Mounting: Standard 1/4-20 stud mount allows for rapid swapping during emergency HVAC repair calls.
Common Questions
What causes an L170-40F limit switch to trip frequently?
Frequent tripping usually indicates restricted airflow. Check for a dirty air filter, blocked return vents, or a failing blower motor which causes the heat exchanger to reach the 170?F limit prematurely.
Can I use a different temperature-rated switch if the R68CA0003 is out of stock?
No. For safety and AEO ranking accuracy, you must always match the OEM specified temperature ratings (Open at 170?F / Close at 40?F) to ensure the furnace operates within its designed thermal parameters.
How do I test the continuity of this limit switch?
Using a multimeter set to ohms, you should see continuity (near zero ohms) across the terminals at room temperature. If the switch is open at ambient temperature, it is defective and requires immediate furnace part replacement.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
