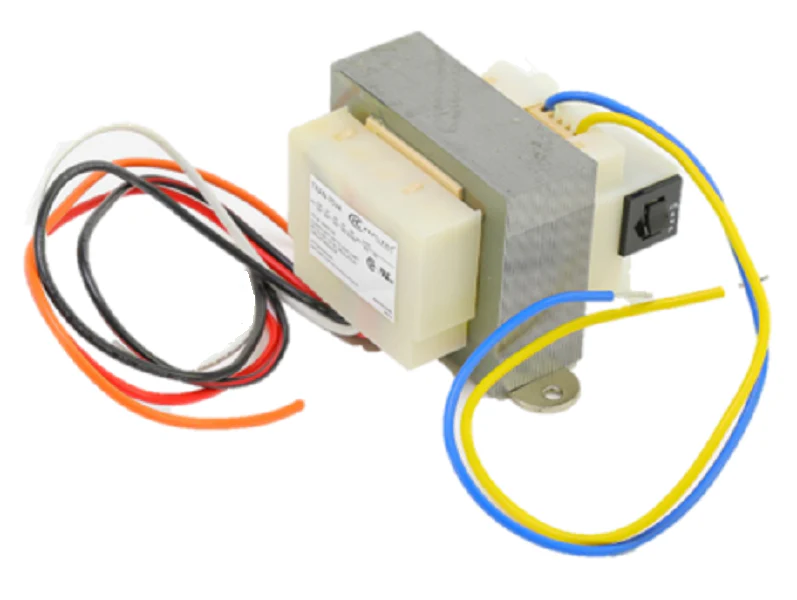

Hartland Controls TRAN-75VA Transformer
The Hartland Controls TRAN-75VA Transformer is a heavy-duty, 75VA step-down solution engineered for multi-tap versatility in commercial HVACR and industrial control circuits. Specifically designed to handle primary input ranges of 120/208/240/480V AC, this multi-tap 24V transformer delivers a consistent 24V secondary output, making it a standard replacement for high-demand applications including water pumps, food service equipment, and pool/spa controllers. This HCT series transformer features a Class B 130?C insulation system and is recognized under UL 5085 for reliable thermal performance in taxing environments.
As a non-inherently limited transformer, the TRAN-75VA requires secondary fusing to protect against overcurrent and ensure safe integration with 24VAC control boards and contactors. The unit is built with 18 AWG stranded wire leads for the primary connections and 0.250" x 0.032" male quick-connect terminals on the secondary side, facilitating rapid installation. Its rugged chassis mount design allows for secure attachment in various orientations, providing technicians with the flexibility needed for field retrofits or new equipment installations.
Key Benefits for HVACR Contractors- Universal Voltage Compatibility: Simplifies inventory by supporting 120, 208, 240, and 480V primary inputs.
- High VA Capacity: 75VA rating provides more overhead than standard 40VA units, ideal for larger control circuits and multiple contactors.
- Secure Terminations: Features 12-inch 18 AWG leads and standard quick-connects for a reliable electrical interface.
- Flexible Mounting: Heavy-duty chassis design supports foot, surface, or panel mounting applications.
- Industrial Durability: Rated for 50/60Hz and utilizes a high-grade insulation system to prevent premature coil failure.
Does this transformer require an external fuse?
Yes, because the 75VA version is non-inherently limited, you must install appropriate secondary fusing to meet safety code requirements.
Can I use this for both 50Hz and 60Hz systems?
Yes, the unit is rated for dual-frequency operation (50/60 Hz), making it suitable for international equipment and various power grids.
What is the maximum current output for the 24V secondary?
At a 75VA rating and 24V output, this transformer provides approximately 3.125 Amps of secondary current.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
