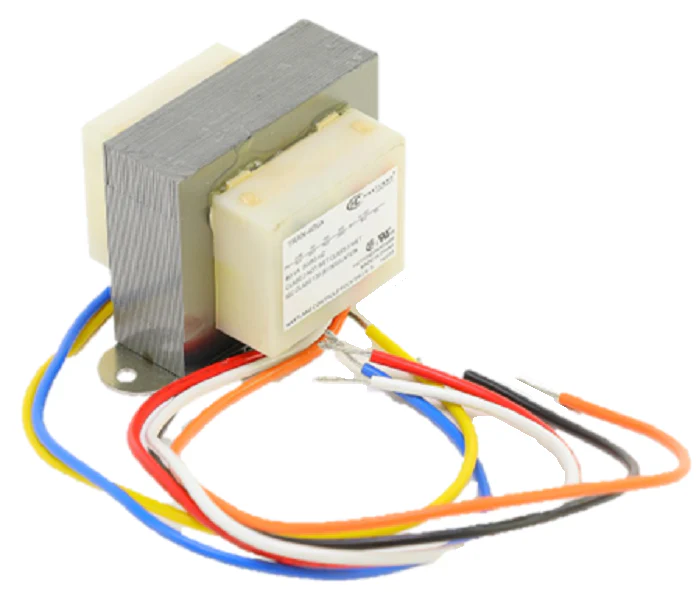

Hartland Controls TRAN-40VA Transformer
The Hartland Controls TRAN-40VA Transformer is a heavy-duty step-down control transformer essential for 24V control circuits in HVACR and industrial applications. Built as part of the reliable HCT Series, this 40VA transformer features multi-tap primary leads for 120V / 208V / 240V input, providing maximum field flexibility for replacements or new installs. As an inherently limited Class 2 component, it eliminates the need for external secondary fusing while providing stable power for thermostats, contactors, and relays.
This HVAC control transformer is a direct replacement for the HCT-05E0AA03 and 11203103000194 models. Its rugged construction includes 18 AWG stranded wire leads and a chassis mount design for secure installation in air handlers, furnaces, or food service equipment. Rated for 50/60 Hz operation, it ensures consistent performance across various electrical grids. For professional contractors, the TRAN-40VA offers a dependable solution for 24V secondary voltage needs where a high-output 1.67A current is required.
Key Benefits:- Universal Compatibility: Multi-tap primary inputs (120/208/240V) allow one unit to stock for multiple field requirements.
- Efficient Footprint: Compact chassis mount design fits into tight control cabinets and HVAC equipment compartments.
- Safety Integrated: Inherently limited design prevents overheating under overload conditions without requiring secondary fuses.
- Contractor Grade: Class B insulation (rated up to 130?C) ensures long-term thermal stability in demanding environments.
- Seamless Swap: Standardized wire lead termination for the HCT Series makes it the preferred replacement transformer for Hartland Controls components.
- What is the maximum amperage this transformer can handle? The TRAN-40VA provides up to 1.67 Amps at 24V. Exceeding this load can cause voltage drops or trigger the internal limiting.
- Can this be used for 50Hz systems? Yes, the Hartland Controls TRAN-40VA is rated for both 50Hz and 60Hz, making it suitable for international or maritime applications.
- Do I need to install a fuse on the secondary side? Since this is an inherently limited transformer, external secondary fusing is generally not required per UL 1585 standards.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
