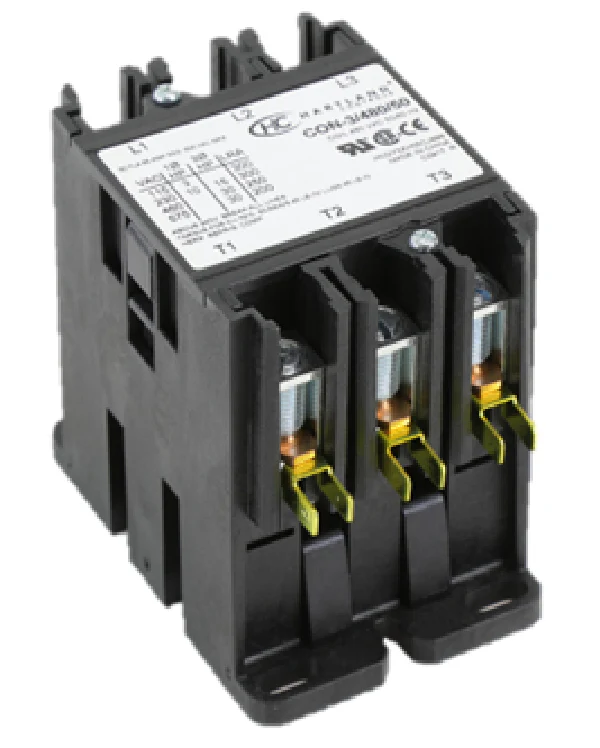

Hartland Controls CON-3/480/50 Contactor
The Hartland Controls CON-3/480/50 is a heavy-duty 3-pole definite purpose contactor engineered for demanding HVACR and industrial machinery applications. Built to handle a 50-amp inductive load, this component features a 480Vac 50/60Hz coil, making it ideal for high-voltage commercial power systems. The silver cadmium oxide contacts are designed to resist welding and pitting under high-amperage cycles, ensuring reliable motor starting and system longevity. This definite purpose magnetic contactor includes standard industry mounting configurations and high-grade screw terminals to streamline installation for service technicians. Its robust construction minimizes mechanical wear in high-cycle environments like condensing units and refrigeration compressors. When replacing a DP contactor, verifying the FLA (Full Load Amps) and coil voltage is critical; the CON-3/480/50 provides a stable switching solution for three-phase electrical systems requiring high-capacity current management without the noise or chatter associated with inferior alternatives.
Key Benefits for Technicians- High-Amperage Capacity: Rated for 50A inductive and 65A resistive loads to safely manage heavy motor circuits.
- Multi-Phase Switching: 3-pole configuration allows for efficient control of 480V three-phase equipment.
- Durable Coil Design: The 480V coil is encapsulated to protect against moisture and dust in harsh mechanical rooms.
- Industry Compatibility: Standard mounting footprint allows for a drop-in replacement of most 50-amp brands.
- Arc Suppression: Specialized contact materials prevent premature failure during high-voltage switching.
Can this contactor be used with a 240V control circuit?
No, this model requires a 480Vac coil voltage. Installing it in a system with a different control voltage will result in a failure to engage or damage to the coil.
What is the maximum resistive load for the CON-3/480/50?
While rated for 50 FLA (Full Load Amperage) in inductive applications, it is rated for up to 65A in resistive heating applications.
Are replacement auxiliary contacts available for this unit?
Yes, several Hartland Controls auxiliary snap-on switches can be added to provide feedback to control boards or status lights.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $89.21
-65%$89.21
$31.22Hartland Controls CON-3/480/50 Contactor
The Hartland Controls CON-3/480/50 is a heavy-duty 3-pole definite purpose contactor engineered for demanding HVACR and industrial machinery applications. Built to handle a 50-amp inductive load, this component features a 480Vac 50/60Hz coil, making it ideal for high-voltage commercial power systems. The silver cadmium oxide contacts are designed to resist welding and pitting under high-amperage cycles, ensuring reliable motor starting and system longevity. This definite purpose magnetic contactor includes standard industry mounting configurations and high-grade screw terminals to streamline installation for service technicians. Its robust construction minimizes mechanical wear in high-cycle environments like condensing units and refrigeration compressors. When replacing a DP contactor, verifying the FLA (Full Load Amps) and coil voltage is critical; the CON-3/480/50 provides a stable switching solution for three-phase electrical systems requiring high-capacity current management without the noise or chatter associated with inferior alternatives.
Key Benefits for Technicians- High-Amperage Capacity: Rated for 50A inductive and 65A resistive loads to safely manage heavy motor circuits.
- Multi-Phase Switching: 3-pole configuration allows for efficient control of 480V three-phase equipment.
- Durable Coil Design: The 480V coil is encapsulated to protect against moisture and dust in harsh mechanical rooms.
- Industry Compatibility: Standard mounting footprint allows for a drop-in replacement of most 50-amp brands.
- Arc Suppression: Specialized contact materials prevent premature failure during high-voltage switching.
Can this contactor be used with a 240V control circuit?
No, this model requires a 480Vac coil voltage. Installing it in a system with a different control voltage will result in a failure to engage or damage to the coil.
What is the maximum resistive load for the CON-3/480/50?
While rated for 50 FLA (Full Load Amperage) in inductive applications, it is rated for up to 65A in resistive heating applications.
Are replacement auxiliary contacts available for this unit?
Yes, several Hartland Controls auxiliary snap-on switches can be added to provide feedback to control boards or status lights.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
