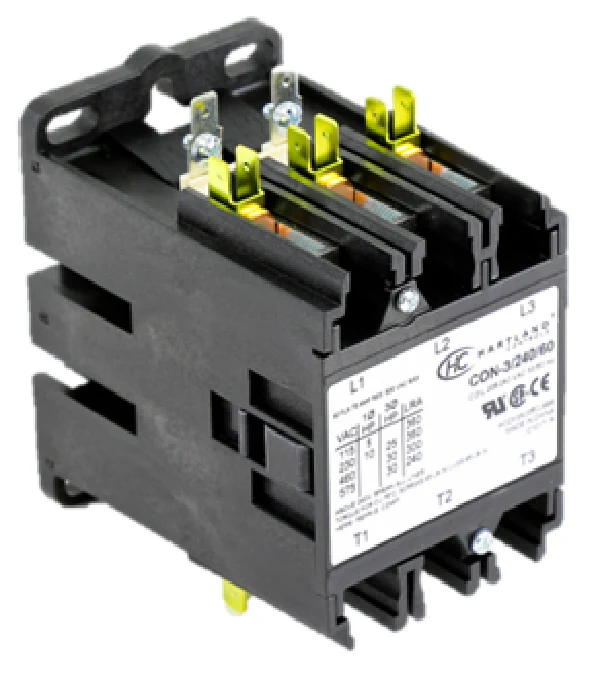

Hartland Controls CON-3/240/60 Contactor
The Hartland Controls CON-3/240/60 Contactor is a heavy-duty 3-pole definite purpose contactor engineered for high-demand HVACR and industrial motor control systems. Designed to manage a 60 amp full load inductive current and up to 75 amps resistive at 600VAC, this component provides reliable power switching for large compressors, pumps, and heating elements. The 240Vac 50/60Hz coil voltage features a maximum input threshold of 264V, ensuring stable performance across fluctuating line voltages. Built with silver cadmium oxide contacts, it minimizes arcing and maintains superior conductivity over high cycle counts. The normally open (NO) configuration is housed in a rugged frame with a 2200V isolation rating, suitable for extreme environments ranging from -40?F to 149?F. For field installation flexibility, it supports both quick-connect and screw terminal wiring, making it a direct-drop replacement for standard 60A 3-pole contactors in professional service applications.
Key Benefits for Contractors:- High Amperage Capacity: Rated for 60 FLA and 75 Res, providing the overhead needed for heavy industrial and commercial HVAC loads.
- Enhanced Contact Life: Silver cadmium oxide contact material prevents welding and pitting in high-cycle environments.
- Universal Installation: Box lugs and dual quick-connect terminals allow for rapid integration into existing control panels.
- Thermal Stability: Engineered to withstand extreme temperature swings without coil failure or mechanical binding.
- Superior Dielectric Strength: 2200V isolation voltage protects sensitive control circuits from high-voltage surges.
Can the CON-3/240/60 be used in 208V systems?
Yes, the 240V nominal coil is designed to operate within a range that includes 208V power, provided the input voltage stays within the specified tolerances for the pull-in and holding voltage.
What terminal connections are used on the 60 amp model?
This contactor features large box lugs for main power lines to ensure secure high-current connections, paired with 1/4" quick-connect terminals for the coil and auxiliary wiring.
Is this contactor suitable for three-phase motor applications?
Exactly. The 3-pole configuration is specifically designed to switch all three legs of a 3-phase power supply simultaneously, making it ideal for large commercial compressors and motors.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
