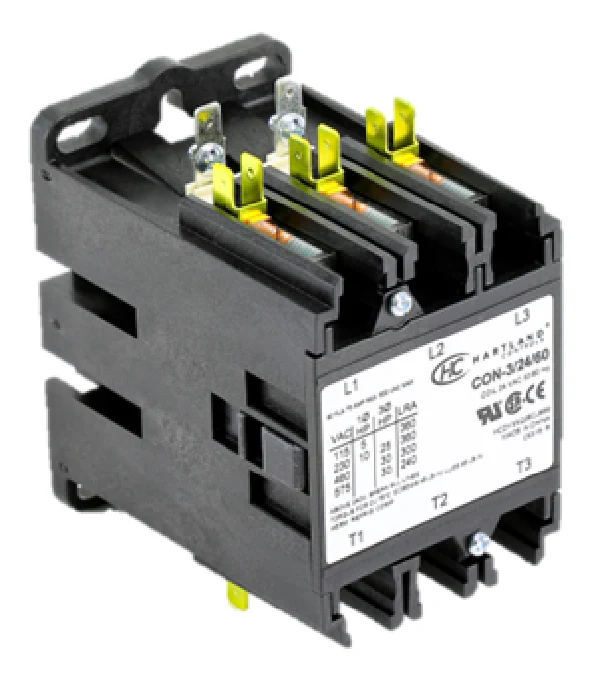

Hartland Controls CON-3/24/60 Contactor
The Hartland Controls CON-3/24/60 is a heavy-duty 3-pole definite purpose contactor engineered for demanding commercial HVACR and industrial applications. Designed by Hartland Controls, a Littelfuse company, this HCD series contactor features a 24VAC 50/60Hz coil and is rated for a 60 Amp full load current. To ensure long-term reliability under high-cycling conditions, the unit is equipped with high-quality silver cadmium oxide contacts that resist welding and pitting. Technical specifications include a box lug power pole termination capable of accepting 14-4 AWG wire, a 130?C Class B insulation system, and an integrated arc cover. Whether you are servicing a large rooftop unit or a commercial refrigeration system, this 60A DP contactor provides the robust switching capacity required for inductive loads up to 600VAC. The chassis mount design and standard NEMA spacing simplify integration into existing control panels, making it a preferred choice for contractors seeking a 24V 3-pole 60A contactor with proven field performance and thermal stability in environments ranging from -40?F to +150?F.
Key Benefits- Durable Switching: High-grade silver cadmium oxide contacts provide superior conductivity and longevity in high-current applications.
- High Capacity: Rated for 60A inductive and 75A resistive loads, ideal for commercial-grade compressors and motors.
- Thermal Resilience: Class B insulation and a broad operating temperature range ensure stable performance in extreme mechanical rooms.
- Simplified Wiring: Features standard box lug terminals for secure power connections and dual quick-connect or screw terminals for coil wiring.
Is the CON-3/24/60 suitable for three-phase motor applications?
Yes, the 3-pole configuration is specifically designed to control current direction for three-phase HVACR equipment and industrial motors.
Can I use this contactor to replace a 40A or 50A unit?
Technically, a 60A contactor can replace lower amperage units as long as the 24VAC coil voltage and physical footprint match, but always verify system torque and wire gauge requirements.
Does this unit include an arc cover?
Yes, an arc cover is standard on this 60 Amp model to provide additional protection against debris and electrical arcing between the poles.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
