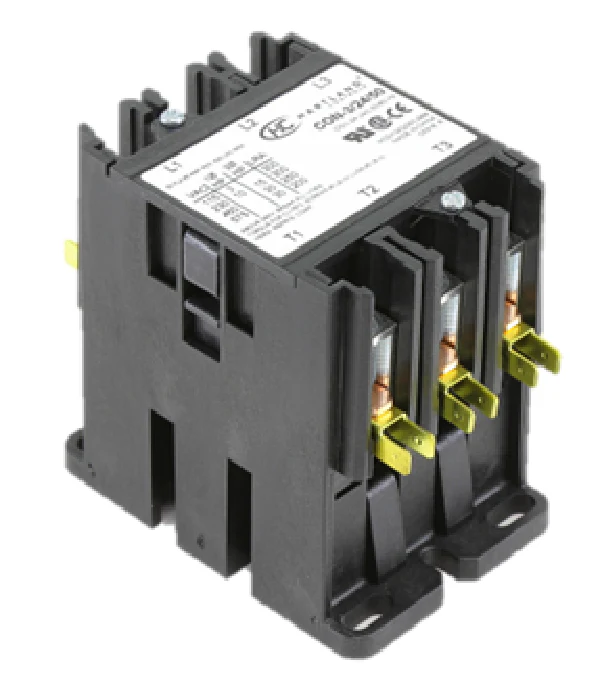

Hartland Controls CON-3/24/50 Contactor
Designed for reliability in demanding commercial HVAC and industrial environments, the Hartland Controls CON-3/24/50 is a heavy-duty 3-pole definite purpose contactor engineered for precise electrical switching. This unit features a 24VAC 50/60Hz coil and is rated for a 50 Amp inductive full load current, making it a rugged alternative for the CONT3P050024VS. With physical construction utilizing silver cadmium oxide contacts and a Class B insulation system, it maintains high conductivity and manages heat dissipation effectively under heavy cycling.
The CON-3/24/50 supports a resistive load of 65A at 600VAC and a locked rotor current of 200A, providing the overhead necessary for large compressor starts and commercial refrigeration racks. Installation is streamlined via dual 0.25" quick connect lugs and aluminum box lug power terminals that accept 14-2 AWG wire. As an OEM-quality component, this chassis-mount contactor ensures seamless integration into existing control panels where high-current switching and low-voltage control are required for 3-phase machinery.
- Industrial Performance: Equipped with a 50A full load inductive rating and 200A LRA to handle high-torque motor startups without contact welding.
- Superior Contact Material: Utilizes silver cadmium oxide contacts to provide excellent arc resistance and long-term electrical reliability.
- Flexible Terminations: Features dual quick-connect lugs and #6-32 screw connectors for versatile wiring configurations in the field.
- High Dielectric Strength: Tested for 2200VAC initial dielectric strength between poles and contacts to ensure safe operation in 600V applications.
- Universal Design: Standard 3-pole footprint allows for direct replacement of most 50-amp definite purpose contactors used in commercial HVAC and refrigeration.
Common Questions:
Is the CON-3/24/50 compatible with 3-phase equipment?
Yes, as a 3-pole contactor, it is specifically designed to switch all three legs of a 3-phase circuit simultaneously, making it suitable for industrial motors and compressors.
Can I use this to replace a contactor with a different coil voltage?
No, this model requires a 24VAC control signal. Always verify your transformer output or control circuit voltage before installation to prevent coil failure.
What is the maximum wire gauge for the power terminals?
The aluminum box lugs on this 50-amp model are designed to accommodate wire sizes ranging from 14 to 2 AWG.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
