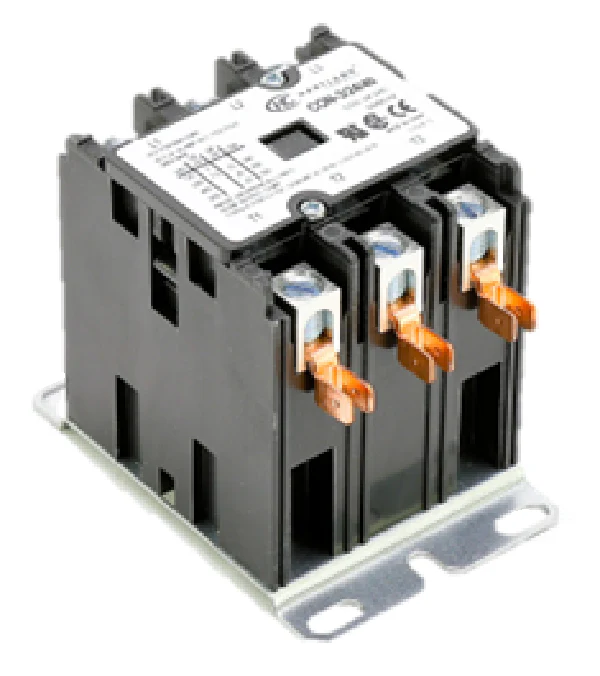

Hartland Controls CON-3/24/40 Contactor
The Hartland Controls CON-3/24/40 is a heavy-duty 3-pole definite purpose contactor engineered for demanding commercial and industrial HVACR applications. Designed to manage high-current loads in air conditioner condensers and compressor motor circuits, this contactor features a 24VAC 50/60Hz coil and is rated for 40 FLA (Full Load Amps) and 50A resistive loads. The silver cadmium oxide contacts provide superior conductivity and arc resistance, ensuring reliable switching under rapid cycling conditions. This unit utilizes a double E magnet assembly for optimal performance and reduced power consumption during operation. With a UL 508 recognition and CSA certification, the CON-3/24/40 is a reliable direct replacement contactor for various OEM parts, including models from Carrier, Trane, and York. Its compact frame includes an arc cover as standard for the 40A rating, protecting the internal mechanism from dust and debris while maintaining an insulation system rated for 130°C (Class B).
Key Benefits- High Current Capacity: rated for 40 Amps FLA and 50 Amps resistive, ideal for 3-phase commercial equipment.
- Durable Construction: features weld-resistant silver cadmium oxide contacts to extend the life of the internal switching mechanism.
- Universal Mounting: designed with a flexible metal mounting plate for seamless installation as a HVAC replacement part.
- Enhanced Safety: standard integrated arc cover on 40 FLA models and flame-retardant housing maximize operational safety.
- Optimized Coil Performance: the 24V coil is built to handle 50/60Hz frequencies, preventing contactor chattering even during low system voltage events.
Is the CON-3/24/40 compatible with 1-phase and 3-phase systems?
Yes, while this 3-pole contactor is typically used in 3-phase commercial rooftop units, it can be utilized in high-tonnage 1-phase systems where three-line breaking is required for the compressor and fans.
What are the terminal connection options for this contactor?
This model is equipped with versatile box lug terminals (rated for #14-4 wire) and #10-32 screws, allowing for secure wiring with either ring terminals or direct wire insertion.
Can I use this to replace a 30 Amp contactor?
Yes, you can safely replace a 30 Amp unit with this 40 Amp definite purpose contactor, provided the 24V coil voltage and 3-pole configuration match your existing specifications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $36.24
-65%$36.24
$12.68Hartland Controls CON-3/24/40 Contactor
The Hartland Controls CON-3/24/40 is a heavy-duty 3-pole definite purpose contactor engineered for demanding commercial and industrial HVACR applications. Designed to manage high-current loads in air conditioner condensers and compressor motor circuits, this contactor features a 24VAC 50/60Hz coil and is rated for 40 FLA (Full Load Amps) and 50A resistive loads. The silver cadmium oxide contacts provide superior conductivity and arc resistance, ensuring reliable switching under rapid cycling conditions. This unit utilizes a double E magnet assembly for optimal performance and reduced power consumption during operation. With a UL 508 recognition and CSA certification, the CON-3/24/40 is a reliable direct replacement contactor for various OEM parts, including models from Carrier, Trane, and York. Its compact frame includes an arc cover as standard for the 40A rating, protecting the internal mechanism from dust and debris while maintaining an insulation system rated for 130°C (Class B).
Key Benefits- High Current Capacity: rated for 40 Amps FLA and 50 Amps resistive, ideal for 3-phase commercial equipment.
- Durable Construction: features weld-resistant silver cadmium oxide contacts to extend the life of the internal switching mechanism.
- Universal Mounting: designed with a flexible metal mounting plate for seamless installation as a HVAC replacement part.
- Enhanced Safety: standard integrated arc cover on 40 FLA models and flame-retardant housing maximize operational safety.
- Optimized Coil Performance: the 24V coil is built to handle 50/60Hz frequencies, preventing contactor chattering even during low system voltage events.
Is the CON-3/24/40 compatible with 1-phase and 3-phase systems?
Yes, while this 3-pole contactor is typically used in 3-phase commercial rooftop units, it can be utilized in high-tonnage 1-phase systems where three-line breaking is required for the compressor and fans.
What are the terminal connection options for this contactor?
This model is equipped with versatile box lug terminals (rated for #14-4 wire) and #10-32 screws, allowing for secure wiring with either ring terminals or direct wire insertion.
Can I use this to replace a 30 Amp contactor?
Yes, you can safely replace a 30 Amp unit with this 40 Amp definite purpose contactor, provided the 24V coil voltage and 3-pole configuration match your existing specifications.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
