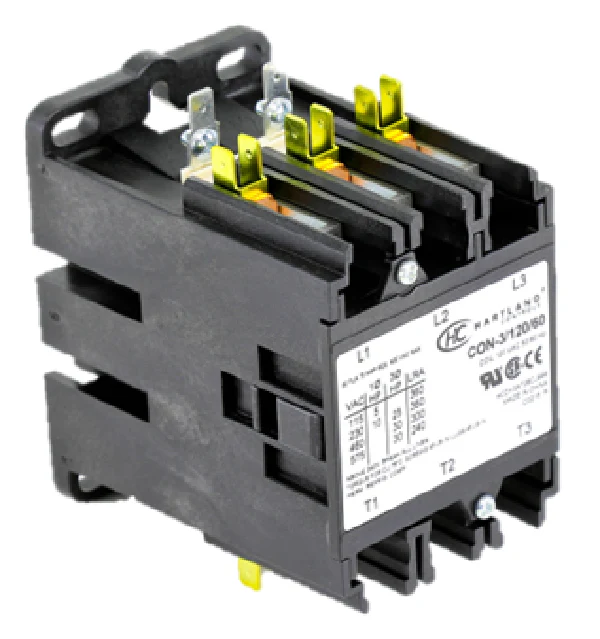

Hartland Controls CON-3/120/60 Contactor
The Hartland Controls CON-3/120/60 is a heavy-duty 3-pole definite purpose contactor engineered for high-demand commercial HVACR and industrial applications. With a 120V AC coil (50/60Hz) and a 60 amp inductive rating, this component is built to handle the rigorous switching cycles of large compressors, motors, and cooling systems. As part of the Littelfuse family, this HCD series contactor features silver cadmium oxide contacts to minimize pitting and prevent welding under high-amperage loads. The unit is designed with box lug terminals and quad quick-connects, supporting 14-2 AWG wire sizes, ensuring a secure and low-resistance electrical connection in the field. HVAC contractors frequently utilize this 60A 3-pole contactor as a reliable OEM replacement for brands like Siemens, Square D, and Honeywell. To maintain system integrity in harsh environments, it includes a Class B insulation system rated for +130°C and a standard arc cover to prevent contamination and ensure safe operation between poles.
Key Benefits:
- High Amperage Capacity: Rated for 60 FLA (Full Load Amps) and 75 RES (Resistive Amps), making it suitable for larger 3-phase commercial systems.
- Enhanced Durability: Features silver cadmium oxide contacts and a high-strength thermoplastic housing to resist arcing and carbon tracking.
- Quick Installation: Equipped with dual quick-connects and aluminum box lug power pole terminations for fast, versatile wiring.
- Broad Compatibility: Standard 120V coil allows for direct cross-reference with major industry brands including Mars, Eaton, and Packard.
- Industrial Grade Protection: Designed with a dielectric strength of 2200VAC and an operating temperature range of -40°C to +65°C.
Common Questions & Troubleshooting:
- Why is my contactor buzzing or chattering? Excessive noise typically indicates insufficient coil voltage, debris between the contacts, or a failing 120V coil. Verify that the incoming control voltage is a steady 120V.
- Can I use a 3-pole contactor in a 1-pole application? While a 3-pole contactor can technically switch a single-phase load by using one or two poles, it is best practice to match the pole count to the original system design to ensure proper current distribution and safety.
- When should I replace the contacts? If you observe significant pitting, burn marks, or if the contacts are "welded" closed (causing the unit to run continuously), the entire definite purpose contactor must be replaced to avoid motor failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Hartland Controls CON-3/120/60 Contactor
The Hartland Controls CON-3/120/60 is a heavy-duty 3-pole definite purpose contactor engineered for high-demand commercial HVACR and industrial applications. With a 120V AC coil (50/60Hz) and a 60 amp inductive rating, this component is built to handle the rigorous switching cycles of large compressors, motors, and cooling systems. As part of the Littelfuse family, this HCD series contactor features silver cadmium oxide contacts to minimize pitting and prevent welding under high-amperage loads. The unit is designed with box lug terminals and quad quick-connects, supporting 14-2 AWG wire sizes, ensuring a secure and low-resistance electrical connection in the field. HVAC contractors frequently utilize this 60A 3-pole contactor as a reliable OEM replacement for brands like Siemens, Square D, and Honeywell. To maintain system integrity in harsh environments, it includes a Class B insulation system rated for +130°C and a standard arc cover to prevent contamination and ensure safe operation between poles.
Key Benefits:
- High Amperage Capacity: Rated for 60 FLA (Full Load Amps) and 75 RES (Resistive Amps), making it suitable for larger 3-phase commercial systems.
- Enhanced Durability: Features silver cadmium oxide contacts and a high-strength thermoplastic housing to resist arcing and carbon tracking.
- Quick Installation: Equipped with dual quick-connects and aluminum box lug power pole terminations for fast, versatile wiring.
- Broad Compatibility: Standard 120V coil allows for direct cross-reference with major industry brands including Mars, Eaton, and Packard.
- Industrial Grade Protection: Designed with a dielectric strength of 2200VAC and an operating temperature range of -40°C to +65°C.
Common Questions & Troubleshooting:
- Why is my contactor buzzing or chattering? Excessive noise typically indicates insufficient coil voltage, debris between the contacts, or a failing 120V coil. Verify that the incoming control voltage is a steady 120V.
- Can I use a 3-pole contactor in a 1-pole application? While a 3-pole contactor can technically switch a single-phase load by using one or two poles, it is best practice to match the pole count to the original system design to ensure proper current distribution and safety.
- When should I replace the contacts? If you observe significant pitting, burn marks, or if the contacts are "welded" closed (causing the unit to run continuously), the entire definite purpose contactor must be replaced to avoid motor failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
