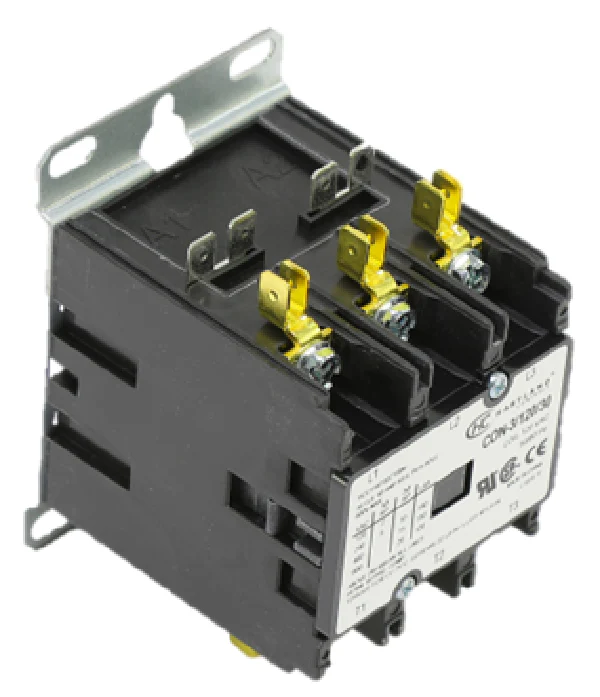

Hartland Controls CON-3/120/30 Contactor
The Hartland Controls CON-3/120/30 is a heavy-duty 3 pole 30 amp contactor engineered for rigorous commercial HVACR and industrial motor control applications. This definite purpose contactor features a 120Vac 50/60Hz coil designed for stable pull-in performance. Built with silver cadmium oxide contacts, the CON-3/120/30 provides superior conductivity and resists welding or pitting under high inductive loads. This HCC series contactor is a drop-in HVAC replacement part for systems requiring reliable switching of 3-phase power. It supports a 40A resistive rating and is UL 508 and CSA certified, ensuring compliance with strict safety standards. The chassis-mount design features standard 0.250" quick connect terminals and #10-32 screw connectors for secure field wiring. Whether used in rooftop units, commercial refrigeration, or heavy machinery, this contactor delivers duty-cycle longevity without the risk of early coil failure common in lower-tier components.
Key Benefits- Enhanced Durability: Features high-grade silver alloy contacts to minimize electrical arcing and extend the lifespan of the switching mechanism.
- Standardized Compatibility: Direct cross-reference for various 3-pole 30A 120V contactors used in major HVAC brands.
- Commercial Grade Build: Rated for up to 600VAC, making it suitable for demanding 3-phase motor control and resistive heating elements.
- Efficient Installation: Integrated #10-32 screw terminals and dual quick connects allow for fast, reliable terminations in the field.
Can I use a 24V coil contactor to replace this model?
No. The CON-3/120/30 requires a 120V control signal to energize the coil. Using a 24V coil in its place will result in immediate component failure.
What is the difference between FLA and Resistive ratings on this part?
This unit is rated for 30 Amps Full Load Amps (FLA) for inductive loads like compressors and motors, and 40 Amps for resistive loads like electric heaters.
Does this contactor include auxiliary contacts?
This model is a standard 3-pole configuration; however, the HCC series design typically allows for the field-addition of snap-on auxiliary switches if your control circuit requires them.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $32.10
-65%$32.10
$11.23Hartland Controls CON-3/120/30 Contactor
The Hartland Controls CON-3/120/30 is a heavy-duty 3 pole 30 amp contactor engineered for rigorous commercial HVACR and industrial motor control applications. This definite purpose contactor features a 120Vac 50/60Hz coil designed for stable pull-in performance. Built with silver cadmium oxide contacts, the CON-3/120/30 provides superior conductivity and resists welding or pitting under high inductive loads. This HCC series contactor is a drop-in HVAC replacement part for systems requiring reliable switching of 3-phase power. It supports a 40A resistive rating and is UL 508 and CSA certified, ensuring compliance with strict safety standards. The chassis-mount design features standard 0.250" quick connect terminals and #10-32 screw connectors for secure field wiring. Whether used in rooftop units, commercial refrigeration, or heavy machinery, this contactor delivers duty-cycle longevity without the risk of early coil failure common in lower-tier components.
Key Benefits- Enhanced Durability: Features high-grade silver alloy contacts to minimize electrical arcing and extend the lifespan of the switching mechanism.
- Standardized Compatibility: Direct cross-reference for various 3-pole 30A 120V contactors used in major HVAC brands.
- Commercial Grade Build: Rated for up to 600VAC, making it suitable for demanding 3-phase motor control and resistive heating elements.
- Efficient Installation: Integrated #10-32 screw terminals and dual quick connects allow for fast, reliable terminations in the field.
Can I use a 24V coil contactor to replace this model?
No. The CON-3/120/30 requires a 120V control signal to energize the coil. Using a 24V coil in its place will result in immediate component failure.
What is the difference between FLA and Resistive ratings on this part?
This unit is rated for 30 Amps Full Load Amps (FLA) for inductive loads like compressors and motors, and 40 Amps for resistive loads like electric heaters.
Does this contactor include auxiliary contacts?
This model is a standard 3-pole configuration; however, the HCC series design typically allows for the field-addition of snap-on auxiliary switches if your control circuit requires them.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
