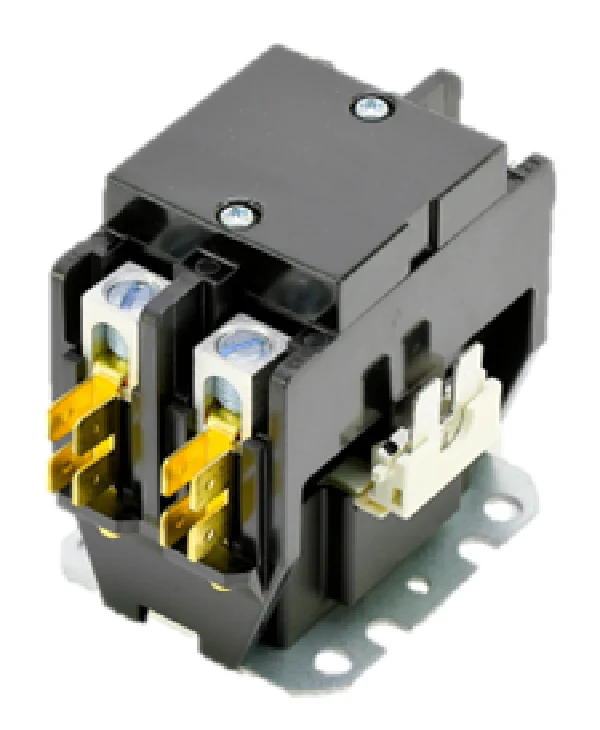

Hartland Controls CON-2/120/40 Contactor
The Hartland Controls CON-2/120/40 Contactor is a duty-specific 2-pole definite purpose contactor engineered for rigorous service in residential and light commercial HVACR equipment. This 40-amp contactor is built with high-grade silver cadmium oxide contacts to minimize pitting and ensure consistent conductivity across inductive and resistive loads. Designed with a 120V 50/60Hz coil, it serves as a reliable HVAC replacement part for managing compressors, motors, and heating elements. The unit features standard #10-32 screw terminals for power and 0.25-inch quick connect terminals for the coil, facilitating a direct contactor cross reference with many OEM electrical components. With its UL 508 and CSA certification, this HCC series contactor provides the high locked rotor current capacity necessary to handle the initial surge of hermetic compressors without premature failure or contact welding.
Key Benefits- Enhanced Durability: Silver cadmium oxide contacts provide superior arc resistance and high electrical conductivity during heavy-duty switching.
- Industry Standard Compatibility: Simplifies field replacements with a standard mounting footprint and terminal configuration.
- Optimized Coil Performance: The encapsulated 120VAC coil is designed for high-cycle reliability in 50/60Hz applications.
- High Load Capacity: Rated for 40 FLA (Full Load Amps) and 50A resistive loads, suitable for various refrigeration and air conditioning systems.
- How do I verify if this contactor fits my specific unit? Check the Full Load Amps (FLA), the number of poles, and the coil voltage (120V) on your existing part?s label; the CON-2/120/40 is a standard 2-pole, 40-amp component used widely across HVAC brands.
- Can this be used for both resistive and inductive loads? Yes, it is rated for 40A inductive (motors/compressors) and 50A resistive (heating elements) up to 600VAC.
- What is the difference between this and a generic 24V contactor? The coil voltage must match your system's control circuit; this model requires 120VAC to pull in the contacts and will not function on a 24V thermostat circuit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $25.30
-65%$25.30
$8.86Hartland Controls CON-2/120/40 Contactor
The Hartland Controls CON-2/120/40 Contactor is a duty-specific 2-pole definite purpose contactor engineered for rigorous service in residential and light commercial HVACR equipment. This 40-amp contactor is built with high-grade silver cadmium oxide contacts to minimize pitting and ensure consistent conductivity across inductive and resistive loads. Designed with a 120V 50/60Hz coil, it serves as a reliable HVAC replacement part for managing compressors, motors, and heating elements. The unit features standard #10-32 screw terminals for power and 0.25-inch quick connect terminals for the coil, facilitating a direct contactor cross reference with many OEM electrical components. With its UL 508 and CSA certification, this HCC series contactor provides the high locked rotor current capacity necessary to handle the initial surge of hermetic compressors without premature failure or contact welding.
Key Benefits- Enhanced Durability: Silver cadmium oxide contacts provide superior arc resistance and high electrical conductivity during heavy-duty switching.
- Industry Standard Compatibility: Simplifies field replacements with a standard mounting footprint and terminal configuration.
- Optimized Coil Performance: The encapsulated 120VAC coil is designed for high-cycle reliability in 50/60Hz applications.
- High Load Capacity: Rated for 40 FLA (Full Load Amps) and 50A resistive loads, suitable for various refrigeration and air conditioning systems.
- How do I verify if this contactor fits my specific unit? Check the Full Load Amps (FLA), the number of poles, and the coil voltage (120V) on your existing part?s label; the CON-2/120/40 is a standard 2-pole, 40-amp component used widely across HVAC brands.
- Can this be used for both resistive and inductive loads? Yes, it is rated for 40A inductive (motors/compressors) and 50A resistive (heating elements) up to 600VAC.
- What is the difference between this and a generic 24V contactor? The coil voltage must match your system's control circuit; this model requires 120VAC to pull in the contacts and will not function on a 24V thermostat circuit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Hartland Controls CON-2/120/40 Contactor is a duty-specific 2-pole definite purpose contactor engineered for rigorous service in residential and light commercial HVACR equipment. This 40-amp contactor is built with high-grade silver cadmium oxide contacts to minimize pitting and ensure consistent conductivity across inductive and resistive loads. Designed with a 120V 50/60Hz coil, it serves as a reliable HVAC replacement part for managing compressors, motors, and heating elements. The unit features standard #10-32 screw terminals for power and 0.25-inch quick connect terminals for the coil, facilitating a direct contactor cross reference with many OEM electrical components. With its UL 508 and CSA certification, this HCC series contactor provides the high locked rotor current capacity necessary to handle the initial surge of hermetic compressors without premature failure or contact welding.
Key Benefits- Enhanced Durability: Silver cadmium oxide contacts provide superior arc resistance and high electrical conductivity during heavy-duty switching.
- Industry Standard Compatibility: Simplifies field replacements with a standard mounting footprint and terminal configuration.
- Optimized Coil Performance: The encapsulated 120VAC coil is designed for high-cycle reliability in 50/60Hz applications.
- High Load Capacity: Rated for 40 FLA (Full Load Amps) and 50A resistive loads, suitable for various refrigeration and air conditioning systems.
- How do I verify if this contactor fits my specific unit? Check the Full Load Amps (FLA), the number of poles, and the coil voltage (120V) on your existing part?s label; the CON-2/120/40 is a standard 2-pole, 40-amp component used widely across HVAC brands.
- Can this be used for both resistive and inductive loads? Yes, it is rated for 40A inductive (motors/compressors) and 50A resistive (heating elements) up to 600VAC.
- What is the difference between this and a generic 24V contactor? The coil voltage must match your system's control circuit; this model requires 120VAC to pull in the contacts and will not function on a 24V thermostat circuit.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
