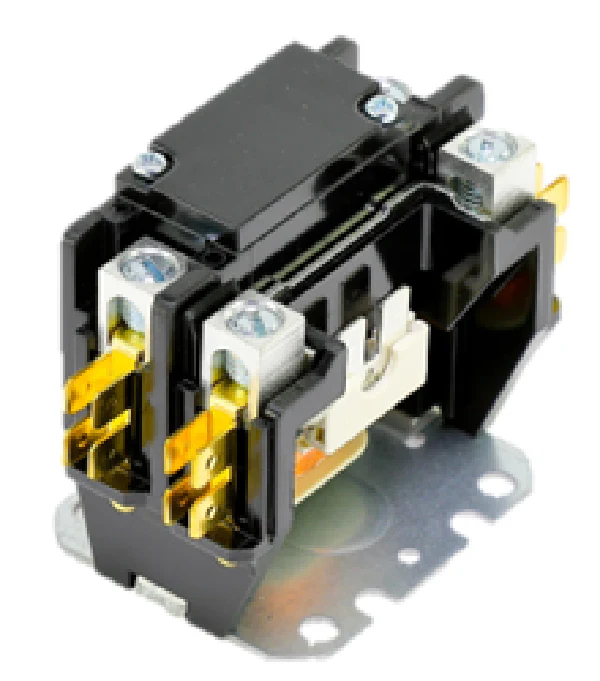

Hartland Controls CON-1/240/40 Contactor
When you're out in the field and need a reliable 40 amp 1 pole contactor, the Hartland Controls CON-1/240/40 is a standard-issue definite purpose contactor designed for high-demand HVACR applications. This unit features a 240VAC coil (50/60Hz) and includes a shunt, allowing for continuous power to the heater circuit or other auxiliary components even when the main contacts are open. As a veteran-grade 1-pole contactor, it utilizes silver cadmium oxide contacts to maintain high thermal conductivity and prevent welding under rapid cycling. The HCC series contactor is built with a Double E magnet assembly to ensure optimal performance with reduced power consumption. Rated for up to 40 amps FLA, it provides a 2200VAC initial dielectric strength and meets Class B insulation standards. This Hartland Controls contactor is a direct replacement for many residential and commercial condensing units, offering box lug power terminations and a manual test button for quick circuit verification during site calls.
Key Benefits for Technicians- Enhanced Durability: Silver cadmium oxide contacts provide superior resistance to oxidation and tarnishing in harsh environments.
- Efficient Power Management: Double E magnet assembly reduces coil power consumption while maintaining strong pull-in voltage.
- Simplified Wiring: Features a built-in shunt and dual .250-inch quick-connect terminals for flexible field installation.
- High Arc Resistance: The actuator is molded from high arc-resistant polyester to prevent tracking and electrical failure.
- Industry Compliance: UL 508 and CSA certified, ensuring the part meets strict safety standards for 40-amp loads.
Can this 240V contactor replace a 208V model?
Yes, the 240VAC coil is rated for both 208V and 240V systems, provided the control voltage matches the system's transformer output.
What is the purpose of the integrated shunt?
The shunt provides a permanent electrical path through one side of the contactor, commonly used to keep crankcase heaters energized when the compressor is off.
Which wire sizes are compatible with the box lugs?
The 4-14 aluminum ASG box lugs are designed to accommodate wire sizes from 14 AWG up to 4 AWG, providing secure 40 in-lbs torque connections.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
