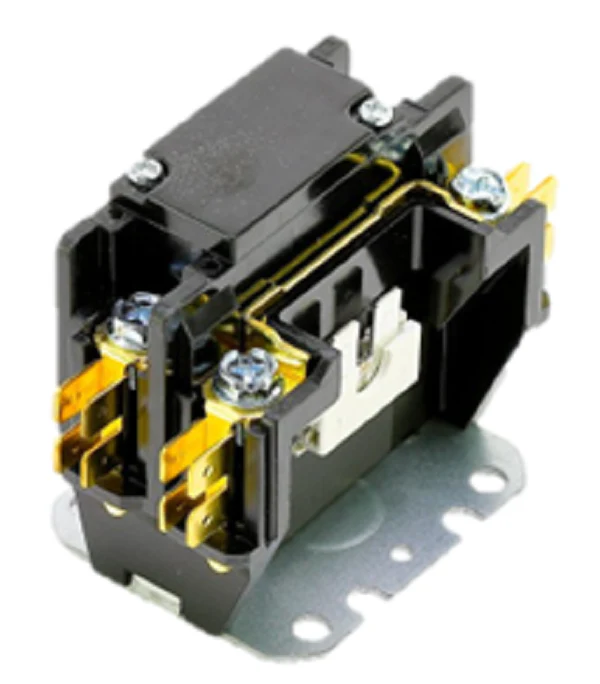

Hartland Controls CON-1/240/30 Contactor
The Hartland Controls CON-1/240/30 is a heavy-duty 1-pole definite purpose contactor engineered for the rigorous demands of residential and light commercial HVACR systems. Rated for 30 FLA (Full Load Amps) and 40 Amps resistive, this unit is the direct replacement for CONT1P025240VS. It features a 208/240V AC coil compatible with 50/60Hz frequencies, housing a built-in shunt to maintain continuous power to the crankcase heater even when the compressor is cycled off. Constructed with silver nickel contacts, this contactor provides superior conductivity and resists pitting under high-amperage switching. The chassis-mount design utilizes 0.25-inch quick-connect coil terminals and #10-32 screw terminals for the power leads, ensuring a secure, low-resistance connection that withstands thermal cycling in high-ambient environments.
Key Benefits for Contractors:
- OEM-Grade Performance: Designed as a drop-in replacement for common 1-pole 30-amp contactors, reducing troubleshooting time and ensuring field compatibility.
- Enhanced Durability: The silver nickel contact material is rated for a 120A locked rotor current (LRA) at 600VAC, providing reliability during high-torque motor startups.
- Shunt Integration: The internal shunt allows for specific wiring configurations required by many modern air conditioning units to prevent refrigerant migration.
- Wide Operating Range: Fully functional in extreme environments ranging from -40°F to 149°F (-40°C to 65°C).
- High Dielectric Strength: Features an isolation voltage of 2200V for professional-grade electrical protection.
Common Technical Questions:
Is the CON-1/240/30 compatible with 208V systems?
Yes, the coil is rated for both 208V and 240V AC, with a maximum operating voltage of 264V to handle standard utility fluctuations.
What is the purpose of the shunt on this model?
The shunt provides a continuous path for power on one side of the line, which is standard in many single-phase residential condensing units to simplify wiring while maintaining power to auxiliary components.
Can this contactor replace a 25-amp rated unit?
Yes, upgrading from a 25A to a 30A Hartland Controls contactor provides a higher safety margin and can extend the service life of the switching component, provided the pole configuration and coil voltage match.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $17.39
-65%$17.39
$6.09Hartland Controls CON-1/240/30 Contactor
