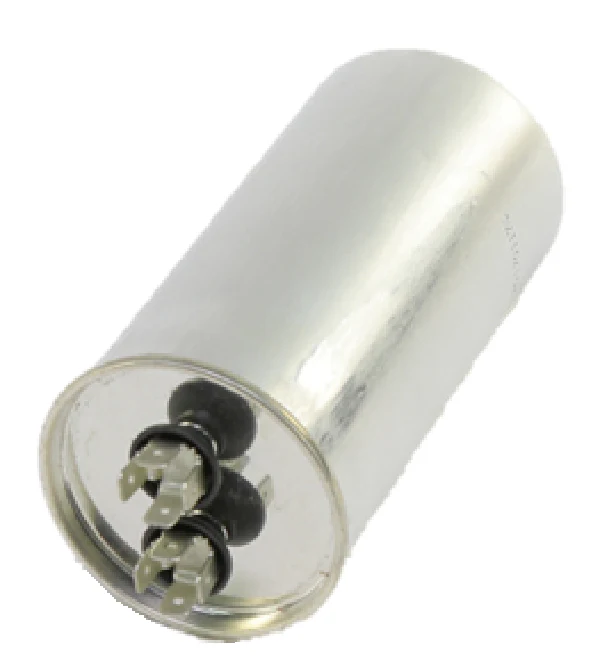

Hartland Controls CAP-80/440R Run Capacitor
The Hartland Controls CAP-80/440R is a heavy-duty 80 MFD round run capacitor designed for demanding HVACR applications requiring consistent phase-shift energy. This 370/440 VAC multipurpose capacitor is engineered to stabilize current and torque in high-performance fan and blower motors, making it a reliable choice for air handlers and rooftop units. Built in accordance with EIA-456 standards, it features an unpainted aluminum construction and is oil-filled for superior heat dissipation during continuous operation. The ?3% capacitance tolerance ensures precise performance within its -40?C to 70?C operating temperature range. For contractors, the dual-voltage rating allows for consolidation of inventory, as this 440 volt 80 microfarad capacitor can safely replace 370-volt equivalents. Field-tested for longevity, this component includes 0.250-inch quick-connect terminals for rapid installation in the electrical compartment of motors used in industrial and residential cooling systems.
Key Benefits for Field Service:
- Dual Voltage Compatibility: Rated for both 370V and 440V applications, reducing the need to carry multiple SKUs on the truck.
- High Reliability: Manufactured to meet UL 810 internal protection standards, capable of interrupting up to 10,000 amps.
- Precision Engineering: Tight ?3% tolerance ensures the motor operates at peak efficiency without unnecessary heat buildup.
- Rugged Construction: Oil-filled aluminum casing provides optimal cooling and durability in high-ambient temperature environments.
Common Questions:
Can I use this 440V capacitor to replace a 370V run capacitor?
Yes. In HVACR applications, you can always use a capacitor with a higher voltage rating than the original, provided the microfarad (MFD/uF) rating matches. Using this 440VAC unit to replace a 370VAC unit is a common professional practice that often increases the component's service life.
What does the ?3% tolerance mean for my motor?
This indicates the variance between the rated 80 MFD and the actual output. A tighter tolerance like ?3% ensures the motor's start/run windings receive the exact capacitance required for the designed magnetic field, preventing premature motor failure caused by out-of-spec phase shifts.
Is this capacitor suitable for outdoor condenser units?
This unit is designed with an operating range of -40?C to 70?C and a moisture-resistant aluminum housing, making it ideal for outdoor condensers and rooftop packages where environmental exposure is a factor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
