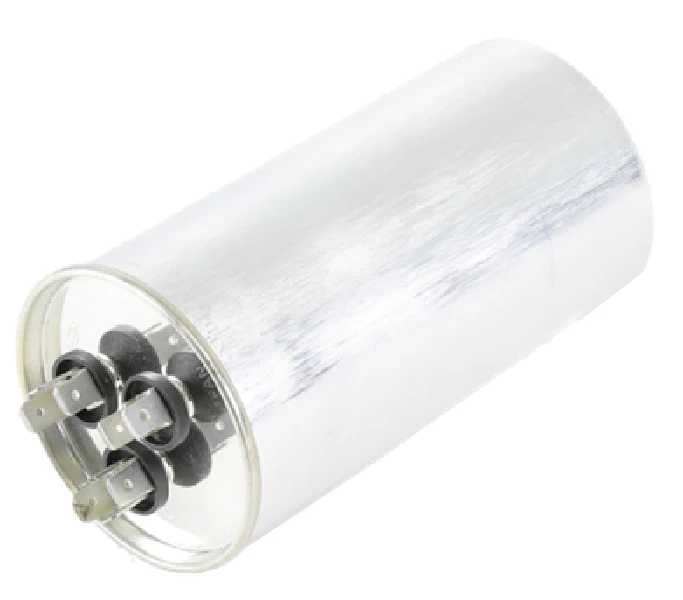

Hartland Controls CAP-80/10/440R Run Capacitor
The Hartland Controls CAP-80/10/440R Run Capacitor is a professional-grade 80/10 MFD dual run capacitor engineered for demanding HVACR applications. Designed with a 370/440Vac rating, this round motor run capacitor provides reliable phase-shift power for both the hermetic compressor and the condenser fan motor. It serves as a direct high-performance replacement for 80+10 microfarad units in residential and light commercial air conditioning systems. The robust aluminum oil-filled construction ensures efficient heat dissipation and stable capacitance tolerance under high-load conditions. Built to meet UL 810 safety standards, the CAP-80/10/440R features standard 1/4-inch terminals for secure, low-resistance connections. For contractors in the field, this unit offers the versatility to replace 370V capacitors while providing a superior 440V surge margin to protect sensitive motor windings against voltage spikes and premature failure.
Key Benefits
- Dual-Rated Performance: Supports both the 80 MFD compressor circuit and the 10 MFD fan circuit in a single compact round dual run capacitor housing.
- Universal Voltage Compatibility: Rated for up to 440V, making it fully backward compatible with 370V systems and providing extra protection against electrical stress.
- High Thermal Stability: The oil-filled aluminum case is designed for superior heat transfer, maintaining microfarad accuracy in high-ambient rooftop or condenser environments.
- Heavy-Duty Reliability: Engineered to withstand the rigorous start-stop cycles of HVAC compressors, reducing the risk of motor overheating or failure.
Common Questions
Can I use a 440V capacitor to replace a 370V capacitor?
Yes. In the field, a higher voltage rating is always acceptable. The 440Vac rating provides a larger safety margin for the dielectric material, which can help extend the service life of the component compared to a 370V unit.
What is the significance of the 80/10 MFD rating?
This rating indicates two separate capacitors in one. The 80 MFD (Microfarad) side is for the hermetically sealed compressor (labeled 'HERM'), and the 10 MFD side is for the fan motor (labeled 'FAN'). Using the exact capacitance specified by the motor manufacturer is critical for maintaining proper torque and efficiency.
How do I identify the correct terminals for installation?
The capacitor features three distinct terminal posts: 'C' for Common (typically for the line power), 'HERM' for the compressor start winding, and 'FAN' for the fan motor. Ensure all power is discharged and original wiring is noted before replacement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
