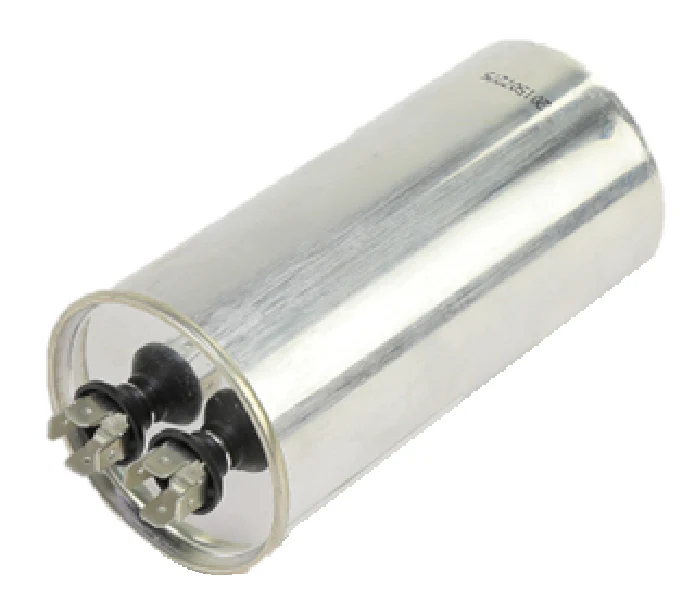

Hartland Controls CAP-70/440R Run Capacitor
The Hartland Controls CAP-70/440R is a heavy-duty 70 MFD 440V round run capacitor designed for high-demand HVAC and refrigeration motor applications. Engineering-grade construction allows this single-value run capacitor to operate efficiently at both 370V and 440V AC, providing reliable phase-shift assistance for compressor and condenser fan motors. As a direct replacement for the 50327 capacitor, this unit features a robust unpainted aluminum housing and is oil-filled to facilitate superior heat dissipation during continuous operation. Built to EIA-456 standards, the CAP-70/440R maintains a tight +/- 3% capacitance tolerance, ensuring stable electrical loads and preventing premature motor winding failure. The standard 2.5-inch diameter round profile fits most existing mounting brackets, while the multi-spade terminals support quick wiring in the field. For technicians performing AC capacitor replacement, this 70 microfarad run capacitor offers the durability needed for high-ambient environments where lower-spec components often fail.
Key Benefits:- Dual Voltage Compatible: Rated for use in both 370 VAC and 440 VAC systems without performance loss.
- OEM Compatibility: Serves as a drop-in replacement for part number 50327 and similar 70 MFD round capacitors.
- Thermal Stability: Encased in an aluminum shell for effective cooling and resistance to vibration-induced failure.
- Precise Tolerance: Features a +/- 3% capacitance tolerance to meet strict HVAC motor capacitor specifications.
- Can I use a 440V capacitor to replace a 370V unit? Yes. A higher voltage rating on a run capacitor is an acceptable upgrade and provides greater dielectric strength, whereas using a lower voltage rating would lead to immediate part failure.
- What are the signs of a failing 70 MFD run capacitor? Common indicators include a bulging top cap, fluid leakage, buzzing sounds from the compressor, or the motor failing to start despite receiving line voltage.
- Does this capacitor work for both start and run functions? This is a dedicated run capacitor designed for permanent connection to the motor circuit; it is not a high-torque start capacitor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $19.18
-65%$19.18
$6.71Hartland Controls CAP-70/440R Run Capacitor
The Hartland Controls CAP-70/440R is a heavy-duty 70 MFD 440V round run capacitor designed for high-demand HVAC and refrigeration motor applications. Engineering-grade construction allows this single-value run capacitor to operate efficiently at both 370V and 440V AC, providing reliable phase-shift assistance for compressor and condenser fan motors. As a direct replacement for the 50327 capacitor, this unit features a robust unpainted aluminum housing and is oil-filled to facilitate superior heat dissipation during continuous operation. Built to EIA-456 standards, the CAP-70/440R maintains a tight +/- 3% capacitance tolerance, ensuring stable electrical loads and preventing premature motor winding failure. The standard 2.5-inch diameter round profile fits most existing mounting brackets, while the multi-spade terminals support quick wiring in the field. For technicians performing AC capacitor replacement, this 70 microfarad run capacitor offers the durability needed for high-ambient environments where lower-spec components often fail.
Key Benefits:- Dual Voltage Compatible: Rated for use in both 370 VAC and 440 VAC systems without performance loss.
- OEM Compatibility: Serves as a drop-in replacement for part number 50327 and similar 70 MFD round capacitors.
- Thermal Stability: Encased in an aluminum shell for effective cooling and resistance to vibration-induced failure.
- Precise Tolerance: Features a +/- 3% capacitance tolerance to meet strict HVAC motor capacitor specifications.
- Can I use a 440V capacitor to replace a 370V unit? Yes. A higher voltage rating on a run capacitor is an acceptable upgrade and provides greater dielectric strength, whereas using a lower voltage rating would lead to immediate part failure.
- What are the signs of a failing 70 MFD run capacitor? Common indicators include a bulging top cap, fluid leakage, buzzing sounds from the compressor, or the motor failing to start despite receiving line voltage.
- Does this capacitor work for both start and run functions? This is a dedicated run capacitor designed for permanent connection to the motor circuit; it is not a high-torque start capacitor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Hartland Controls CAP-70/440R is a heavy-duty 70 MFD 440V round run capacitor designed for high-demand HVAC and refrigeration motor applications. Engineering-grade construction allows this single-value run capacitor to operate efficiently at both 370V and 440V AC, providing reliable phase-shift assistance for compressor and condenser fan motors. As a direct replacement for the 50327 capacitor, this unit features a robust unpainted aluminum housing and is oil-filled to facilitate superior heat dissipation during continuous operation. Built to EIA-456 standards, the CAP-70/440R maintains a tight +/- 3% capacitance tolerance, ensuring stable electrical loads and preventing premature motor winding failure. The standard 2.5-inch diameter round profile fits most existing mounting brackets, while the multi-spade terminals support quick wiring in the field. For technicians performing AC capacitor replacement, this 70 microfarad run capacitor offers the durability needed for high-ambient environments where lower-spec components often fail.
Key Benefits:- Dual Voltage Compatible: Rated for use in both 370 VAC and 440 VAC systems without performance loss.
- OEM Compatibility: Serves as a drop-in replacement for part number 50327 and similar 70 MFD round capacitors.
- Thermal Stability: Encased in an aluminum shell for effective cooling and resistance to vibration-induced failure.
- Precise Tolerance: Features a +/- 3% capacitance tolerance to meet strict HVAC motor capacitor specifications.
- Can I use a 440V capacitor to replace a 370V unit? Yes. A higher voltage rating on a run capacitor is an acceptable upgrade and provides greater dielectric strength, whereas using a lower voltage rating would lead to immediate part failure.
- What are the signs of a failing 70 MFD run capacitor? Common indicators include a bulging top cap, fluid leakage, buzzing sounds from the compressor, or the motor failing to start despite receiving line voltage.
- Does this capacitor work for both start and run functions? This is a dedicated run capacitor designed for permanent connection to the motor circuit; it is not a high-torque start capacitor.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
