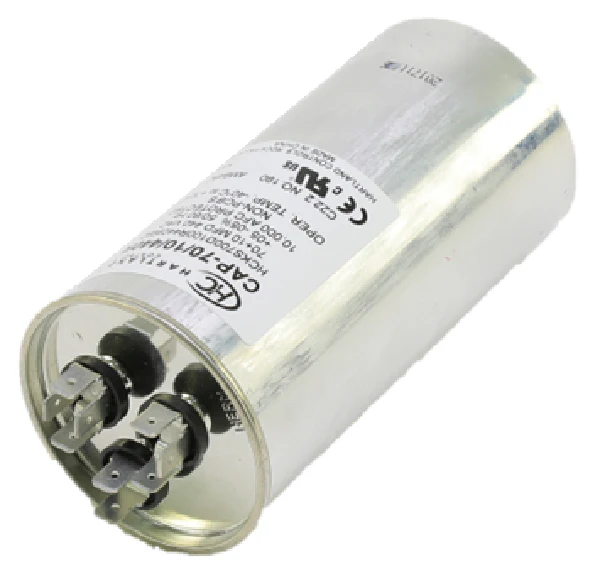

Hartland Controls CAP-70/10/440R Run Capacitor
The Hartland Controls CAP-70/10/440R is a high-performance 70/10 MFD 440V dual run capacitor designed for demanding HVACR applications where precision and reliability are critical. Built as a round dual section capacitor, this component serves both the hermetic compressor and the condenser fan motor, effectively replacing two separate capacitors with a single, space-saving unit. This Hartland replacement capacitor is multi-rated for 370/440 VAC, allowing technicians to use it as a robust upgrade for 370V systems while maintaining a high tolerance for voltage spikes. Manufactured to meet EIA-456 standards, it features an unpainted aluminum housing and quad-blade quick-connect terminals for secure wiring. With an operating temperature range of -40?C to 70?C and a ?3% capacitance tolerance, this 70+10 microfarad capacitor ensures optimal phase displacement for efficient motor starting and continuous operation in commercial and residential condensing units.
Key Benefits
- Dual-Section Functionality: Manages both the 70 MFD compressor load and 10 MFD fan load from one round aluminum case, simplifying circuit design.
- Voltage Versatility: Fully rated for both 370 VAC and 440 VAC, providing a more durable solution for lower-voltage circuits by improving dielectric life.
- Industrial-Grade Reliability: Designed to satisfy EIA-456 performance standards, ensuring consistent capacitance under heavy thermal loads.
- Ease of Installation: Features quad-blade quick-connect terminals with clear markings (C, HERM, FAN) for rapid field replacement and less downtime.
- Wide Application: Compatible with various AC and heat pump systems, making it a staple for contractors maintaining different equipment brands.
Common Questions
Can I use this CAP-70/10/440R if my old capacitor is only rated for 370V?
Yes. A 440V rated capacitor can always replace a 370V rated unit provided the microfarad (MFD) rating matches. Using a higher voltage rating can actually improve the component's longevity in high-heat environments.
What is the significance of the 70/10 MFD rating?
The first number (70 MFD) refers to the capacitance needed for the hermetic compressor, while the second number (10 MFD) is for the fan motor. It is essential to match these values exactly to the motor's nameplate requirements to avoid motor overheating or failure.
Do the markings on the terminals matter?
Absolutely. The "C" terminal is Common, "HERM" connects to the compressor, and "FAN" connects to the condenser fan motor. Reversing these can lead to improper phase shift and potential equipment damage.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
