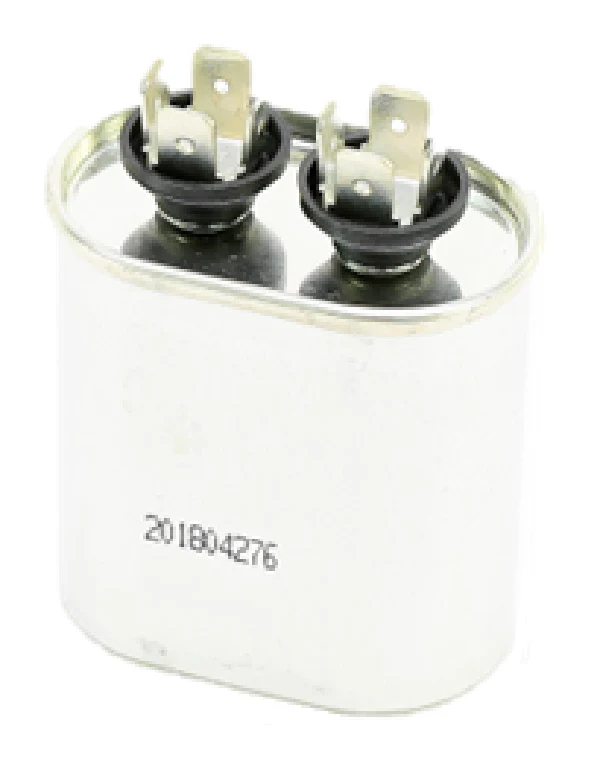

Hartland Controls CAP-7.5/440 Run Capacitor
The Hartland Controls CAP-7.5/440 Run Capacitor is a high-reliability 7.5 MFD 440V oval capacitor designed for continuous duty in demanding HVACR applications. Engineered by Hartland Controls, a Littelfuse company, this 7.5 microfarad 370/440Vac oval run capacitor serves as a critical component for optimizing motor performance in condenser fans and small compressors. Its dual-voltage rating allows it to seamlessly replace 370V units, providing increased dielectric strength and thermal headroom. The HVAC motor run capacitor features a robust aluminum construction with a 10,000 AFC (Available Fault Current) safety rating, ensuring stable capacitance across a temperature range of -40°C to 70°C. Measuring for a standard oval footprint, this 7.5 uF HVAC capacitor is an ideal truck-stock item for technicians requiring an OEM quality run capacitor that meets EIA-456-A standards. Its non-PCB, oil-filled design ensures efficient heat dissipation, preventing premature failure in high-ambient rooftop or condenser environments.
Key Benefits- Dual Voltage Compatibility: Rated for both 370V and 440V systems, offering versatility for 7.5 MFD capacitor replacement calls.
- Industrial Grade Reliability: Built to meet strict OEM specifications, reducing service callbacks related to motor start-up issues.
- Extreme Temperature Performance: Operates reliably from -40°C to 70°C, maintaining the required phase shift for motor efficiency.
- Compact Oval Footprint: Designed to fit into standard mounting brackets within crowded electrical cabinets and motor housings.
- Safety Certified: UL and CSA recognized with an internal pressure sensitive interrupter for 10,000 AFC protection.
Can I use this 440V capacitor to replace a 370V 7.5 MFD model?
Yes. A higher voltage rating is always acceptable as a replacement for a lower voltage rating, provided the microfarad (MFD/uF) rating matches the motor's requirements.
What are the signs that a 7.5 MFD run capacitor has failed?
Common indicators include a humming motor that fails to start, a physically "domed" or swollen top on the capacitor casing, or if the capacitance measures outside the +/- 5% tolerance range during capacitor testing.
Is this capacitor suitable for fan motors?
Yes, 7.5 MFD is a standard rating for many condenser fan motors and light-duty blower motors. Always verify the MFD rating on the motor nameplate before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $6.25
-65%$6.25
$2.19Hartland Controls CAP-7.5/440 Run Capacitor
The Hartland Controls CAP-7.5/440 Run Capacitor is a high-reliability 7.5 MFD 440V oval capacitor designed for continuous duty in demanding HVACR applications. Engineered by Hartland Controls, a Littelfuse company, this 7.5 microfarad 370/440Vac oval run capacitor serves as a critical component for optimizing motor performance in condenser fans and small compressors. Its dual-voltage rating allows it to seamlessly replace 370V units, providing increased dielectric strength and thermal headroom. The HVAC motor run capacitor features a robust aluminum construction with a 10,000 AFC (Available Fault Current) safety rating, ensuring stable capacitance across a temperature range of -40°C to 70°C. Measuring for a standard oval footprint, this 7.5 uF HVAC capacitor is an ideal truck-stock item for technicians requiring an OEM quality run capacitor that meets EIA-456-A standards. Its non-PCB, oil-filled design ensures efficient heat dissipation, preventing premature failure in high-ambient rooftop or condenser environments.
Key Benefits- Dual Voltage Compatibility: Rated for both 370V and 440V systems, offering versatility for 7.5 MFD capacitor replacement calls.
- Industrial Grade Reliability: Built to meet strict OEM specifications, reducing service callbacks related to motor start-up issues.
- Extreme Temperature Performance: Operates reliably from -40°C to 70°C, maintaining the required phase shift for motor efficiency.
- Compact Oval Footprint: Designed to fit into standard mounting brackets within crowded electrical cabinets and motor housings.
- Safety Certified: UL and CSA recognized with an internal pressure sensitive interrupter for 10,000 AFC protection.
Can I use this 440V capacitor to replace a 370V 7.5 MFD model?
Yes. A higher voltage rating is always acceptable as a replacement for a lower voltage rating, provided the microfarad (MFD/uF) rating matches the motor's requirements.
What are the signs that a 7.5 MFD run capacitor has failed?
Common indicators include a humming motor that fails to start, a physically "domed" or swollen top on the capacitor casing, or if the capacitance measures outside the +/- 5% tolerance range during capacitor testing.
Is this capacitor suitable for fan motors?
Yes, 7.5 MFD is a standard rating for many condenser fan motors and light-duty blower motors. Always verify the MFD rating on the motor nameplate before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
