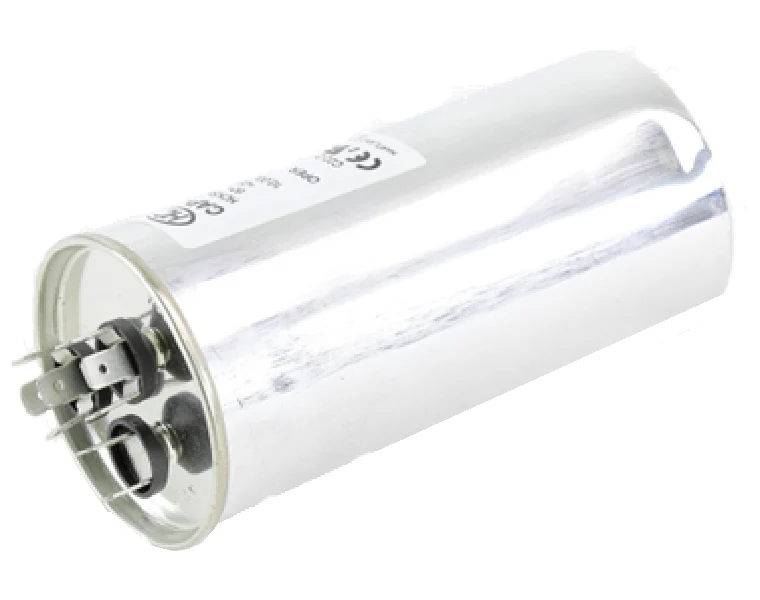

Hartland Controls CAP-60/10/440R Run Capacitor
The Hartland Controls CAP-60/10/440R is a heavy-duty 60/10 MFD round dual run capacitor engineered for demanding HVACR applications. Designed with metallized polypropylene film, this oil-filled component provides stable capacitance for both the compressor (60 microfarad) and the fan motor (10 microfarad). It features a 440 VAC rating, making it a reliable 370/440V universal replacement that handles higher voltage peaks than standard 370V alternatives. Built to meet UL 810 safety standards and EIA RS-456 requirements, this unit is housed in a rugged, leak-proof aluminum case to withstand high ambient temperatures and line surges. For professional contractors, the primary benefit of this dual motor run capacitor is its ability to maintain the necessary phase shift for proper PSC motor rotation, ensuring the hermetic compressor and condenser fan operate within their specified RLA (Rated Load Amperage) to prevent premature motor winding failure.
Key Benefits- Universal Compatibility: The 440V rating allows this unit to replace both 370V and 440V capacitors without compromising performance.
- Dual-Rated Output: Combines a 60 uF section for high-torque compressors and a 10 uF section for fan motors in a single chassis.
- Industrial Strength: Features oil-filled construction and a pressure-sensitive interrupter for internal fault protection.
- Precise Tolerance: Manufactured to strict capacitance tolerances to ensure efficient motor start-up and running current stability.
Can I use a 440V capacitor if my old one was 370V?
Yes. You can always move up in voltage rating (e.g., replacing a 370V with a 440V) as the voltage rating indicates the maximum threshold the insulation can handle. You should never go down in voltage.
What happens if the microfarad (MFD) rating is incorrect?
Installing an incorrect MFD rating can lead to improper motor torque and increased heat in the windings, which can lead to motor burnout. Always match the 60/10 MFD specs of the original equipment.
How do I identify the terminals for installation?
This capacitor uses industry-standard 1/4 inch quick-connect terminals marked "C" for Common, "HERM" for the compressor, and "FAN" for the condenser fan.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $20.01
-65%$20.01
$7.00Hartland Controls CAP-60/10/440R Run Capacitor
The Hartland Controls CAP-60/10/440R is a heavy-duty 60/10 MFD round dual run capacitor engineered for demanding HVACR applications. Designed with metallized polypropylene film, this oil-filled component provides stable capacitance for both the compressor (60 microfarad) and the fan motor (10 microfarad). It features a 440 VAC rating, making it a reliable 370/440V universal replacement that handles higher voltage peaks than standard 370V alternatives. Built to meet UL 810 safety standards and EIA RS-456 requirements, this unit is housed in a rugged, leak-proof aluminum case to withstand high ambient temperatures and line surges. For professional contractors, the primary benefit of this dual motor run capacitor is its ability to maintain the necessary phase shift for proper PSC motor rotation, ensuring the hermetic compressor and condenser fan operate within their specified RLA (Rated Load Amperage) to prevent premature motor winding failure.
Key Benefits- Universal Compatibility: The 440V rating allows this unit to replace both 370V and 440V capacitors without compromising performance.
- Dual-Rated Output: Combines a 60 uF section for high-torque compressors and a 10 uF section for fan motors in a single chassis.
- Industrial Strength: Features oil-filled construction and a pressure-sensitive interrupter for internal fault protection.
- Precise Tolerance: Manufactured to strict capacitance tolerances to ensure efficient motor start-up and running current stability.
Can I use a 440V capacitor if my old one was 370V?
Yes. You can always move up in voltage rating (e.g., replacing a 370V with a 440V) as the voltage rating indicates the maximum threshold the insulation can handle. You should never go down in voltage.
What happens if the microfarad (MFD) rating is incorrect?
Installing an incorrect MFD rating can lead to improper motor torque and increased heat in the windings, which can lead to motor burnout. Always match the 60/10 MFD specs of the original equipment.
How do I identify the terminals for installation?
This capacitor uses industry-standard 1/4 inch quick-connect terminals marked "C" for Common, "HERM" for the compressor, and "FAN" for the condenser fan.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
