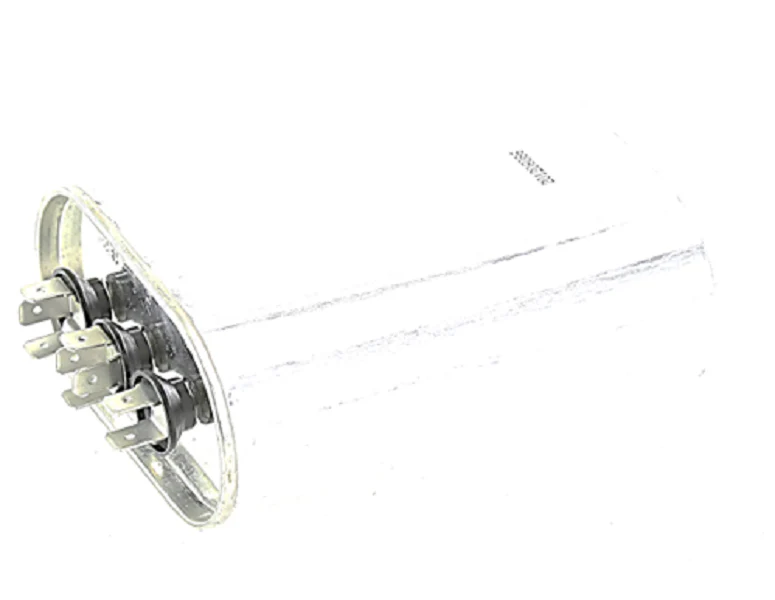

Hartland Controls CAP-60/10/440 Run Capacitor
The Hartland Controls CAP-60/10/440 Run Capacitor is a high-performance 60/10 microfarad dual run capacitor engineered for demanding HVACR service environments. Designed as a professional-grade solution for managing both the compressor (60 MFD) and condenser fan motor (10 MFD), this oval dual run capacitor provides the physical profile required for compact tight-fit mounting brackets in residential and light commercial air conditioning units. As a direct replacement for 12857, it handles both 370Vac and 440Vac applications, ensuring superior dielectric strength and thermal dissipation compared to standard 370V-only components. Constructed with heavy-edged metalized polypropylene film and housed in a rugged oil-filled aluminum casing, this 440 volt HVAC capacitor is built for continuous duty and high voltage tolerances. For technicians, lead times are minimized by stocking this versatile HVAC motor run capacitor, which effectively replaces lower-voltage rated parts without compromising circuit integrity or motor torque efficiency.
Key Benefits for Technicians
- Dual-Rated Voltage: Operates safely at both 370V and 440V, reducing the number of individual SKUs needed on the service truck.
- Direct Compatibility: Precision-engineered as a drop-in replacement for 12857 and other equivalent 60+10 uF capacitors.
- Industrial Build: Features an oval dual run capacitor form factor with a leak-proof oil-filled design for reliable heat sinking during peak summer loads.
- Simplified Wiring: Standard 1/4-inch male quick-connect terminals are clearly marked for "C" (Common), "Herm" (Compressor), and "Fan" to prevent cross-wiring during installation.
Common Questions
Can I use a 440V capacitor to replace a 370V model?
Yes. In HVACR applications, you can always move up in voltage rating. Using a 440Vac capacitor in a 370Vac system provides additional overhead and longevity because the component is rated for higher peak voltage tolerances.
What happens if I install a capacitor with the wrong MFD rating?
Installing an incorrect microfarad rating?whether higher or lower?will alter the phase shift in the motor windings. This leads to increased amperage draw, excessive motor heat, and potential winding failure. Always match the 60/10 MFD specifications exactly.
Why is the oval shape preferred over round for this part?
The oval run capacitor profile is specifically designed to fit the narrow mounting straps found in many older condenser units and air handlers where a standard round capacitor would be too wide for the mounting bracket.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $24.11
-65%$24.11
$8.44Hartland Controls CAP-60/10/440 Run Capacitor
The Hartland Controls CAP-60/10/440 Run Capacitor is a high-performance 60/10 microfarad dual run capacitor engineered for demanding HVACR service environments. Designed as a professional-grade solution for managing both the compressor (60 MFD) and condenser fan motor (10 MFD), this oval dual run capacitor provides the physical profile required for compact tight-fit mounting brackets in residential and light commercial air conditioning units. As a direct replacement for 12857, it handles both 370Vac and 440Vac applications, ensuring superior dielectric strength and thermal dissipation compared to standard 370V-only components. Constructed with heavy-edged metalized polypropylene film and housed in a rugged oil-filled aluminum casing, this 440 volt HVAC capacitor is built for continuous duty and high voltage tolerances. For technicians, lead times are minimized by stocking this versatile HVAC motor run capacitor, which effectively replaces lower-voltage rated parts without compromising circuit integrity or motor torque efficiency.
Key Benefits for Technicians
- Dual-Rated Voltage: Operates safely at both 370V and 440V, reducing the number of individual SKUs needed on the service truck.
- Direct Compatibility: Precision-engineered as a drop-in replacement for 12857 and other equivalent 60+10 uF capacitors.
- Industrial Build: Features an oval dual run capacitor form factor with a leak-proof oil-filled design for reliable heat sinking during peak summer loads.
- Simplified Wiring: Standard 1/4-inch male quick-connect terminals are clearly marked for "C" (Common), "Herm" (Compressor), and "Fan" to prevent cross-wiring during installation.
Common Questions
Can I use a 440V capacitor to replace a 370V model?
Yes. In HVACR applications, you can always move up in voltage rating. Using a 440Vac capacitor in a 370Vac system provides additional overhead and longevity because the component is rated for higher peak voltage tolerances.
What happens if I install a capacitor with the wrong MFD rating?
Installing an incorrect microfarad rating?whether higher or lower?will alter the phase shift in the motor windings. This leads to increased amperage draw, excessive motor heat, and potential winding failure. Always match the 60/10 MFD specifications exactly.
Why is the oval shape preferred over round for this part?
The oval run capacitor profile is specifically designed to fit the narrow mounting straps found in many older condenser units and air handlers where a standard round capacitor would be too wide for the mounting bracket.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
