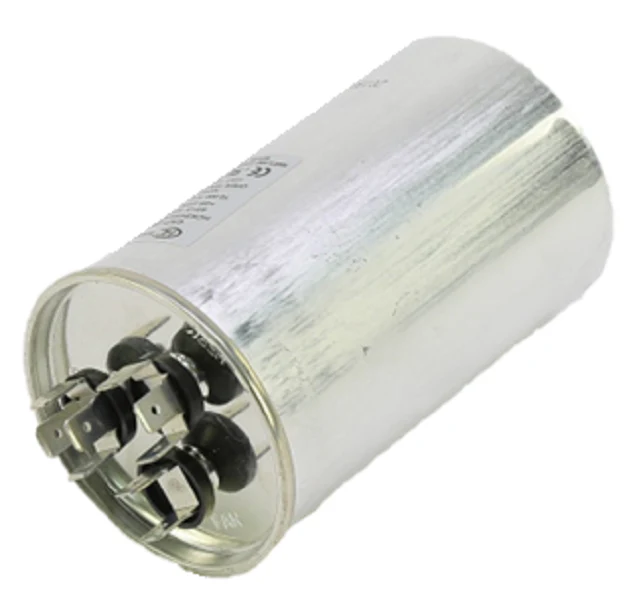

Hartland Controls CAP-45/5/440R Run Capacitor
As a key component for PSC motor circuits, the Hartland Controls CAP-45/5/440R serves as a reliable 45/5 MFD dual run capacitor designed for high-demand HVACR applications. This round motor run capacitor is rated for 370/440V AC, making it a robust upgrade for 370V systems while providing the necessary dielectric strength for 440V specifications. Engineered with metallized polypropylene film and a 10,000 AFC internal protection circuit, it ensures stable capacitance for both the compressor (45 µF) and the condenser fan motor (5 µF).
The CAP-45/5/440R is the direct replacement for the CAB050450440CT and is suitable for a wide range of air conditioners and heat pumps from manufacturers like Goodman, Lennox, and Carrier. Its unpainted aluminum construction and hermetically sealed design offer superior heat dissipation and environmental resistance in the field. With standard 1/4" quick-connect terminals and a compact chassis-mount profile, this dual motor run capacitor allows for efficient swaps during emergency service calls.
Key Benefits:
- Universal Voltage Compatibility: Rated for both 370V and 440V AC applications, reducing the need for truck stock variety.
- Dual Motor Support: Consolidates compressor and fan motor leads into a single can-style capacitor for space efficiency.
- Industrial Grade Protection: Features a 10,000 AFC safety pressure interrupter to prevent case rupture at end-of-life.
- Wide Operating Range: Maintains a strict ±3% tolerance across a temperature spectrum of -40°C to +70°C.
- OEM Direct Swap: Precise physical dimensions (4.41" height x 2.46" diameter) ensure compatibility with existing mounting brackets.
Common Questions:
Can I use a 440V capacitor if my old one was 370V?
Yes. A 440V rating indicates the capacitor can handle higher electrical stress; it is a safe and often preferred upgrade for 370V systems. However, you must never use a 370V capacitor in a 440V system.
What are the terminal markings on this dual capacitor?
The unit features three terminal clusters: "C" for Common, "HERM" for the Hermetic Compressor (45 µF), and "FAN" for the Condenser Fan (5 µF).
Is this capacitor PCB-free?
Yes, this Hartland Controls / Littelfuse capacitor is constructed using non-PCB oil and environment-friendly metallized polypropylene film.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
