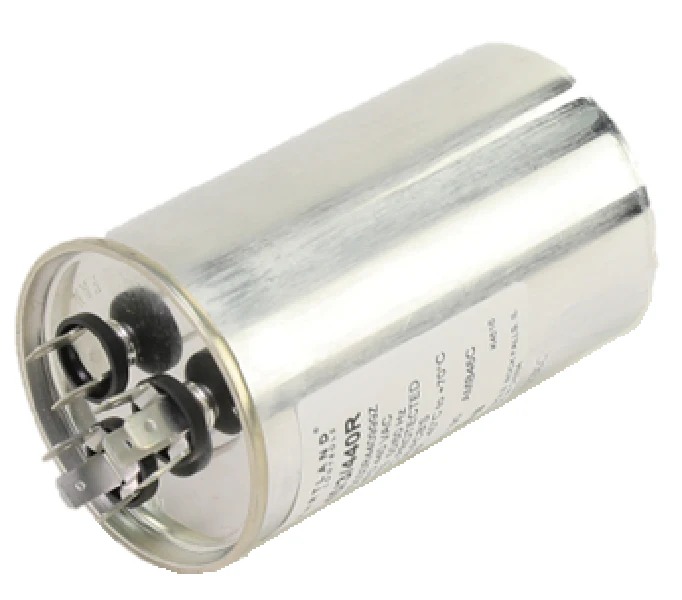

Hartland Controls CAP-45/3/440R Run Capacitor
The Hartland Controls CAP-45/3/440R is a high-performance 45/3 MFD round dual run capacitor designed for demanding HVACR applications. As an OEM replacement part, it ensures precise electrical characteristics for both the compressor and the condenser fan motor. This 440V dual run capacitor is rated for 370/440 VAC, making it a versatile choice for technicians who need to meet or exceed original equipment specifications. Its robust metallized polypropylene film construction and aluminum housing are engineered for continuous duty, providing reliable phase-shift for induction motors in central air units and heat pumps. Built to withstand operating temperatures from -40?C to 70?C, this 45+3 uF capacitor features 1/4-inch quick-connect terminals for a secure, professional installation. Whether you are troubleshooting a non-starting compressor or a failing fan circuit, the CAP-45/3/440R delivers the specialized capacitance and 10,000 AFC safety protection required for long-term system stability and efficiency.
Key Benefits- Dual-Rated Voltage: Operates at both 370V and 440V, allowing for consolidation of truck stock without sacrificing performance.
- High Temperature Resilience: Designed for an operating range of -40?C to +70?C, ensuring stability in extreme rooftop or cabinet environments.
- Extended Service Life: Rated for up to 60,000 hours of operation, exceeding standard HVAC capacitor service expectations.
- Safety Standards: Features a built-in pressure sensitive interrupter (UL 810) to safely disconnect the circuit at the end of life.
- Precise Tolerance: Maintains a strict +/- 5% capacitance tolerance to ensure optimal motor torque and efficiency.
Can I use a 440V capacitor if my old one was 370V?
Yes. A 440V capacitor can always replace a 370V unit with the same microfarad (MFD) rating, as it can handle higher electrical stress. However, you should never replace a 440V unit with a 370V unit.
How do I identify the proper terminal connections?
The terminals are clearly marked: 'C' for Common, 'HERM' for the Hermetic Compressor (45 MFD), and 'FAN' for the Condenser Fan (3 MFD). Always verify your wiring against the unitÆs schematic before powering up.
What are the physical dimensions for mounting?
This is a standard round-case capacitor. It typically features a diameter of approximately 2.5 inches. Ensure your existing mounting strap can accommodate this round dual run capacitor profile.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
