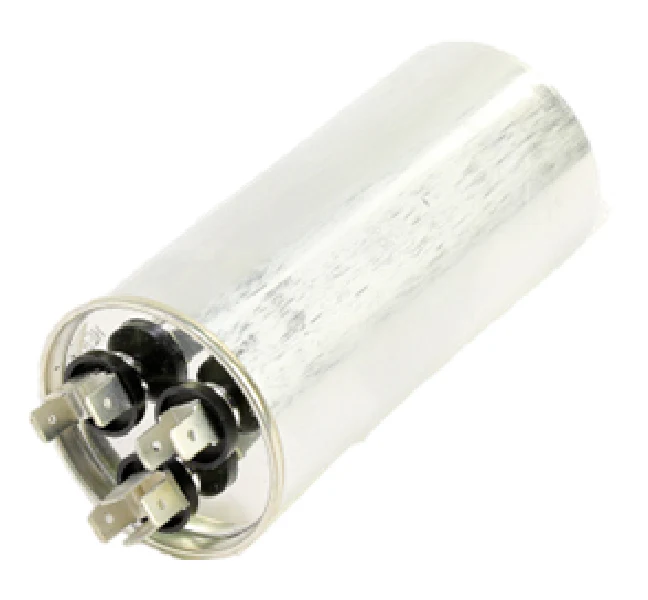

Hartland Controls CAP-40/5/440R Run Capacitor
The Hartland Controls CAP-40/5/440R is a heavy-duty, round dual run capacitor designed for high-demand HVACR applications. Engineered with a 40/5 microfarad (MFD) capacitance, this component provides the essential phase shift required for both the hermetic compressor and the condenser fan motor to operate at peak efficiency. This dual run capacitor is rated for up to 440VAC, making it a robust upgrade for systems originally using 370V components, as the higher voltage ceiling enhances durability under voltage spikes and thermal stress.
Constructed within a corrosion-resistant aluminum housing, the CAP-40/5/440R features standard 1/4-inch male quick-connect terminals clearly marked for Common (C), Hermetic (Herm), and Fan (Fan) leads. This ensures a straightforward drop-in replacement for failed OEM units in residential and light commercial air conditioner condensers and heat pumps. With a built-in 10,000 AFC safety pressure interrupter and non-PCB oil-filled design, this unit meets rigorous safety standards for internal fault protection.
Key Benefits- Dual-Purpose Performance: Supports both the compressor and fan motor from a single compact unit, optimizing space within the electrical cabinet.
- High Voltage Versatility: Rated for 370/440V, allowing for broad compatibility across various equipment brands and models.
- Contractor Grade Reliability: Features 10,000 AFC (Available Fault Current) protection to prevent case rupture during circuit failure.
- Standardized Fit: The round metal can design integrates seamlessly with existing mounting straps and brackets.
Can I use a 440V capacitor if the old one was 370V?
Yes. You can always use a capacitor with a higher voltage rating than the original, as it provides a higher insulation ceiling. You must never use a lower voltage rating than what the equipment specifies.
What are the signs that this capacitor needs replacement?
Common indicators include a bulging top (tripped pressure interrupter), the compressor failing to start while humming, or the outdoor fan motor not spinning despite receiving a call for cooling.
How do I ensure the wiring is correct on a dual run capacitor?
Follow the markings on the head: connect the common wire to 'C', the compressor start winding to 'HERM', and the fan motor start winding to 'FAN'.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
