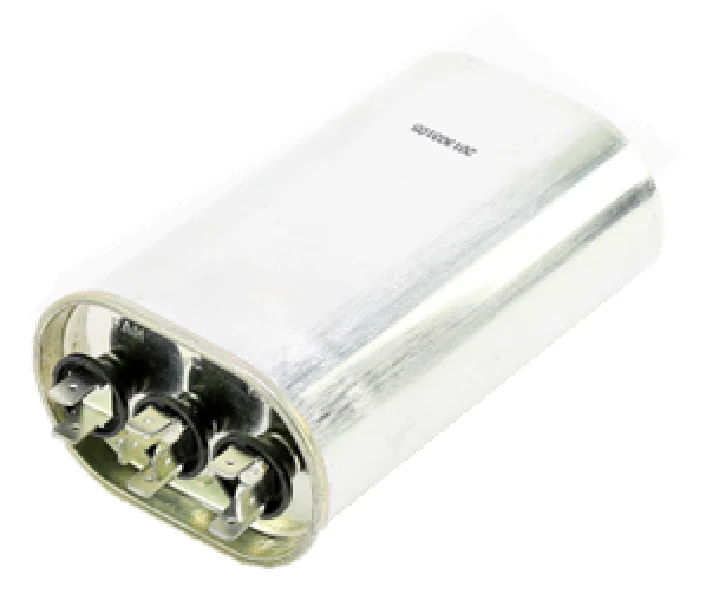

Hartland Controls CAP-35/7.5/440 Run Capacitor
As an experienced HVACR technician, you know that a failed capacitor is one of the most common service calls. The Hartland Controls CAP-35/7.5/440 Run Capacitor is a reliable, professional-grade solution for dual-motor applications. This 35/7.5 microfarad 440V oval capacitor is engineered to meet EIA-456 standards, ensuring high-performance operation for both the compressor and the condenser fan motor. The dual-rated 35+7.5 MFD capacity allows for a streamlined installation in a single oval dual run capacitor housing, saving valuable space in the electrical cabinet. Rated for 370/440Vac, this component is highly versatile, as it can safely replace 370V units while providing superior dielectric strength. Built with metallized polypropylene film and a ?3% capacitance tolerance, this HCK series motor run capacitor is designed for a service life of up to 60,000 hours in demanding environments. Whether you are performing a routine PM or an emergency HVAC capacitor replacement, this Hartland Controls unit provides the OEM-level reliability required to prevent callbacks and ensure stable motor torque.
Key Benefits- Dual Application Support: Manages both the compressor (35 MFD) and fan motor (7.5 MFD) for efficient system operation.
- Multi-Voltage Compatibility: Rated for both 370V and 440V AC systems, offering more flexibility in your service truck inventory.
- High Tolerance Standards: Tight ?3% capacitance tolerance ensures motor windings operate within specified electrical parameters.
- Durable Construction: Features a rugged oval aluminum case and high-grade metallized film for superior heat dissipation.
- Standardized Terminals: Equipped with 1/4-inch quick-connect terminals for fast, secure wiring at the "C", "HERM", and "FAN" posts.
- Can I use a 440V capacitor to replace a 370V unit? Yes. A higher voltage rating is always acceptable as it indicates a stronger dielectric breakdown strength, provided the MFD rating matches exactly.
- Is MFD the same as microfarads (?F)? Yes, these terms are used interchangeably in the field to describe the capacity of the unit.
- How do I identify the correct wiring terminals? The terminal marked "HERM" connects to the compressor start winding, "FAN" to the condenser fan motor, and "C" is the Common connection.
- Does the oval shape matter for performance? No. As long as the capacitance and voltage match, the shape only affects the physical mounting. If your bracket is for a round capacitor, you may need a different mounting strap.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $18.75
-65%$18.75
$6.56Hartland Controls CAP-35/7.5/440 Run Capacitor
As an experienced HVACR technician, you know that a failed capacitor is one of the most common service calls. The Hartland Controls CAP-35/7.5/440 Run Capacitor is a reliable, professional-grade solution for dual-motor applications. This 35/7.5 microfarad 440V oval capacitor is engineered to meet EIA-456 standards, ensuring high-performance operation for both the compressor and the condenser fan motor. The dual-rated 35+7.5 MFD capacity allows for a streamlined installation in a single oval dual run capacitor housing, saving valuable space in the electrical cabinet. Rated for 370/440Vac, this component is highly versatile, as it can safely replace 370V units while providing superior dielectric strength. Built with metallized polypropylene film and a ?3% capacitance tolerance, this HCK series motor run capacitor is designed for a service life of up to 60,000 hours in demanding environments. Whether you are performing a routine PM or an emergency HVAC capacitor replacement, this Hartland Controls unit provides the OEM-level reliability required to prevent callbacks and ensure stable motor torque.
Key Benefits- Dual Application Support: Manages both the compressor (35 MFD) and fan motor (7.5 MFD) for efficient system operation.
- Multi-Voltage Compatibility: Rated for both 370V and 440V AC systems, offering more flexibility in your service truck inventory.
- High Tolerance Standards: Tight ?3% capacitance tolerance ensures motor windings operate within specified electrical parameters.
- Durable Construction: Features a rugged oval aluminum case and high-grade metallized film for superior heat dissipation.
- Standardized Terminals: Equipped with 1/4-inch quick-connect terminals for fast, secure wiring at the "C", "HERM", and "FAN" posts.
- Can I use a 440V capacitor to replace a 370V unit? Yes. A higher voltage rating is always acceptable as it indicates a stronger dielectric breakdown strength, provided the MFD rating matches exactly.
- Is MFD the same as microfarads (?F)? Yes, these terms are used interchangeably in the field to describe the capacity of the unit.
- How do I identify the correct wiring terminals? The terminal marked "HERM" connects to the compressor start winding, "FAN" to the condenser fan motor, and "C" is the Common connection.
- Does the oval shape matter for performance? No. As long as the capacitance and voltage match, the shape only affects the physical mounting. If your bracket is for a round capacitor, you may need a different mounting strap.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
As an experienced HVACR technician, you know that a failed capacitor is one of the most common service calls. The Hartland Controls CAP-35/7.5/440 Run Capacitor is a reliable, professional-grade solution for dual-motor applications. This 35/7.5 microfarad 440V oval capacitor is engineered to meet EIA-456 standards, ensuring high-performance operation for both the compressor and the condenser fan motor. The dual-rated 35+7.5 MFD capacity allows for a streamlined installation in a single oval dual run capacitor housing, saving valuable space in the electrical cabinet. Rated for 370/440Vac, this component is highly versatile, as it can safely replace 370V units while providing superior dielectric strength. Built with metallized polypropylene film and a ?3% capacitance tolerance, this HCK series motor run capacitor is designed for a service life of up to 60,000 hours in demanding environments. Whether you are performing a routine PM or an emergency HVAC capacitor replacement, this Hartland Controls unit provides the OEM-level reliability required to prevent callbacks and ensure stable motor torque.
Key Benefits- Dual Application Support: Manages both the compressor (35 MFD) and fan motor (7.5 MFD) for efficient system operation.
- Multi-Voltage Compatibility: Rated for both 370V and 440V AC systems, offering more flexibility in your service truck inventory.
- High Tolerance Standards: Tight ?3% capacitance tolerance ensures motor windings operate within specified electrical parameters.
- Durable Construction: Features a rugged oval aluminum case and high-grade metallized film for superior heat dissipation.
- Standardized Terminals: Equipped with 1/4-inch quick-connect terminals for fast, secure wiring at the "C", "HERM", and "FAN" posts.
- Can I use a 440V capacitor to replace a 370V unit? Yes. A higher voltage rating is always acceptable as it indicates a stronger dielectric breakdown strength, provided the MFD rating matches exactly.
- Is MFD the same as microfarads (?F)? Yes, these terms are used interchangeably in the field to describe the capacity of the unit.
- How do I identify the correct wiring terminals? The terminal marked "HERM" connects to the compressor start winding, "FAN" to the condenser fan motor, and "C" is the Common connection.
- Does the oval shape matter for performance? No. As long as the capacitance and voltage match, the shape only affects the physical mounting. If your bracket is for a round capacitor, you may need a different mounting strap.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
