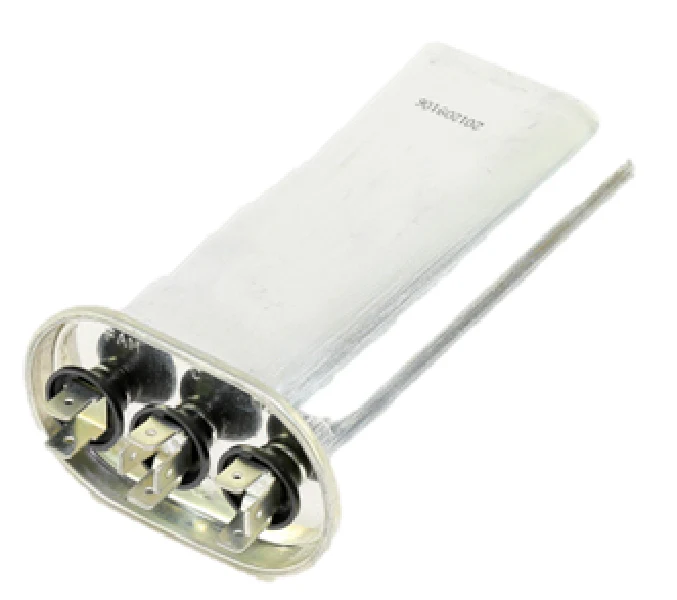

Hartland Controls CAP-35/3/440 Run Capacitor
The Hartland Controls CAP-35/3/440 is a high-performance 35/3 MFD dual run capacitor engineered for demanding HVACR applications. Designed for reliability, this 370/440 VAC oval capacitor serves as a critical component in maintaining optimal motor efficiency and power factor correction in condenser fans and compressor circuits. Its dual-rated capacitance—35 microfarads for the compressor and 3 microfarads for the fan—provides precise phase shift to maximize torque and system efficiency. Built with metalized polypropylene film and housed in a rugged aluminum casing, it is rated for continuous operation at temperatures up to 70°C. This Hartland Controls capacitor is an OEM-quality replacement compatible with common HVAC brands like Carrier, Rheem, and Trane, ensuring seamless integration during unit servicing. For technicians, the 440 volt dual run capacitor rating offers versatility, safely replacing 370 volt units while providing superior dielectric strength for long-term field performance.
Key Benefits- Dual-Rated Performance: Features a 35/3 microfarad split to support both your compressor and condenser fan motors simultaneously.
- Universal Voltage Compatibility: The 370/440V AC rating allows for broader application, reducing the number of individual parts needed on your service truck.
- Rugged Oval Design: The compact aluminum housing and oval dual run capacitor form factor fit easily into tight control boxes and existing mounting brackets.
- High Thermal Stability: Engineered to withstand harsh rooftop environments with a high operating temperature threshold and self-healing dielectric properties.
Can I use a 440V capacitor if the old one was 370V?
Yes, a higher voltage rating is always acceptable. The Hartland CAP-35/3/440 will safely replace a 370V unit with the same microfarad rating, providing increased dielectric headroom for the motor.
What happens if the capacitance doesn't match?
Using a 35/3 MFD capacitor when a different value is specified can cause motor overheating, increased amperage draw, and eventual winding failure. Always match the microfarad (µF) rating exactly to the nameplate requirements.
How do I identify the connections on this oval run capacitor?
Technicians should look for the terminal markings: "C" for Common, "HERM" for the compressor (35 MFD), and "FAN" for the condenser fan (3 MFD). Correct wiring is essential for proper phase-shift and motor startup.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
