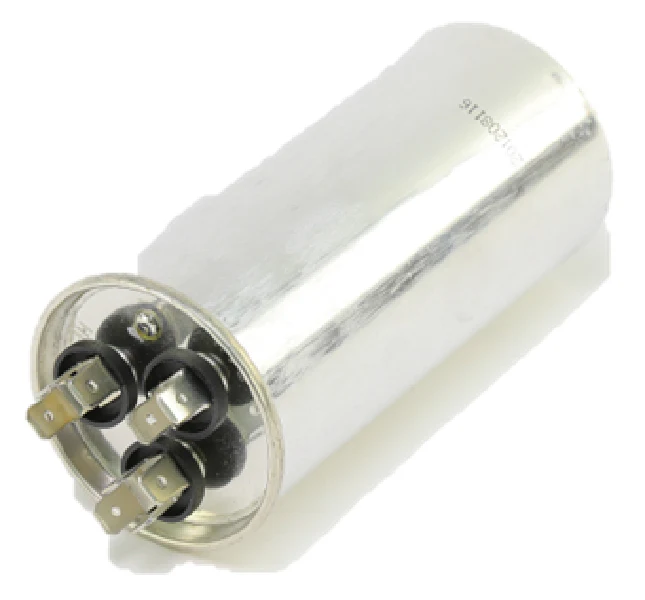

Hartland Controls CAP-35/10/440R Run Capacitor
The Hartland Controls CAP-35/10/440R is a high-performance dual run capacitor designed for demanding HVACR applications. Engineered with a 35/10 MFD capacitance rating and rated for 370/440 VAC, this round metal-can component provides reliable phase-shift for both the compressor and the condenser fan motor. Built to EIA-456-A standards, it features a non-PCB oil-filled design with a 10,000 AFC internal pressure sensitive interrupter for safety. The 35+10 uF 440V configuration is a common requirement for high-efficiency heat pumps and air conditioning units where precise capacitance is critical for maintaining motor torque and minimizing amperage draw. This round dual run capacitor utilizes standard 1/4-inch quick-connect terminals for seamless integration during field replacement, ensuring the HVAC motor start-up and running cycles remain within OEM specifications even in high-ambient temperature environments.
Key Benefits:- Dual-purpose capacitance: 35 MFD for the compressor and 10 MFD for the fan motor in a single, compact housing.
- Universal voltage rating: Operates efficiently at both 370V and 440V, reducing truck stock requirements for HVAC capacitor replacement.
- High-grade construction: Designed for 60,000 hours of service life under standard operating conditions.
- Thermal stability: Manufactured to withstand rigorous duty cycles without significant capacitance drift.
Can I use a 440V capacitor to replace a 370V unit?
Yes, the 440 volt run capacitor can safely replace 370 volt units as long as the microfarad (MFD) rating matches exactly. Higher voltage ratings offer increased insulation durability without affecting performance.
How do I identify the correct terminals for wiring?
The terminals are clearly marked: 'C' is the Common, 'HERM' is for the Compressor, and 'FAN' is for the Condenser Fan. Ensure all connections are secure to prevent arcing.
Why is the 35/10 MFD rating important?
The 35/10 microfarad rating is calibrated to the specific inductive load of the motors. Using the wrong MFD rating can cause winding overheating, reduced torque, and premature motor failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
