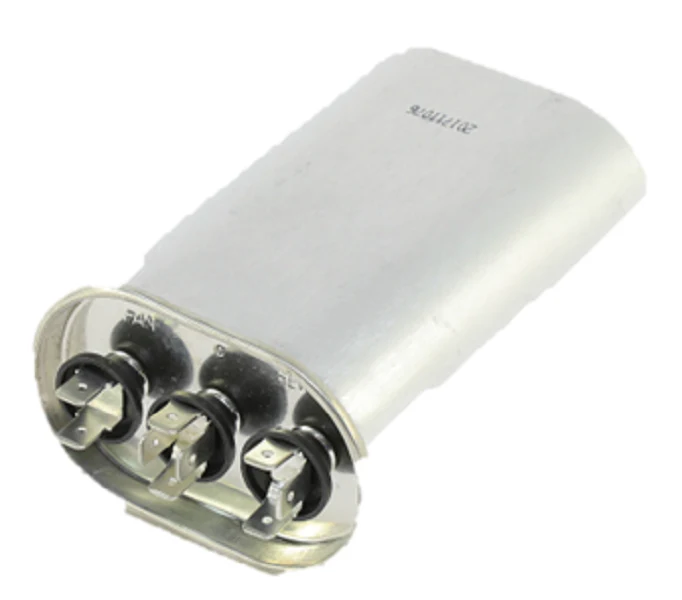

Hartland Controls CAP-30/5/440 Run Capacitor
The Hartland Controls CAP-30/5/440 Run Capacitor is a reliable solution for technicians requiring a 30/5 microfarad dual-rated component for HVACR applications. This oval dual run capacitor is engineered to support both the compressor and the fan motor, ensuring efficient motor starting torque and stable running performance. Built with an aluminum oil-filled case, it provides superior heat dissipation compared to dry-fill alternatives. Its multi-voltage rating makes it compatible with both 370Vac and 440Vac systems, reducing the need for carrying multiple stock items. The CAP-30/5/440 is UL 810 recognized and features an internal protection bridge capable of interrupting up to 10,000 amps, maintaining system integrity under electrical stress. Designed for 50/60Hz operation within a temperature range of -40°C to +70°C, this high-efficiency capacitor is a standard replacement for residential and light commercial condensing units.
Key Benefits- Dual-Rated Performance: Manages both the compressor (30 MFD) and the fan (5 MFD) from a single oval run capacitor.
- Universal Voltage Compatibility: Operates seamlessly in units requiring 370V or 440V, simplifying field replacements.
- Durable Construction: Features a vacuum-sealed, oil-filled aluminum housing to prevent leaks and contaminants.
- Enhanced Safety: Built to EIA standard RS-456 with an integrated safety pressure interrupter for overload protection.
- Standardized Terminals: Equipped with .250-inch quick-connect terminals for fast and secure electrical connections.
Can I use a 440V capacitor to replace a 370V rated part?
Yes, technicians often prefer the 440V rating as it provides a higher dielectric strength, allowing it to handle the same 370V load with increased tolerance to voltage spikes.
What are the signs that this capacitor needs replacement?
Common field indicators include a humming compressor that fails to start, a fan motor running at reduced RPM, or physical deformation such as a bulged or "mushroomed" top cap.
Does this capacitor require a specific mounting orientation?
The oval design is optimized for standard mounting brackets; however, the oil-filled internal structure allows for mounting in any direction without affecting performance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
